General
|
| UPS Topology |
Online Double Conversion |
| Energy Saving Technology |
Online ECO Mode Efficiency > 95% |
| Active PFC Compatibility |
Yes |
Input
|
| Generator Compatibility |
Yes |
| Nominal Input Voltage (Vac) |
230 ± 10% |
| Input Voltage Range (Vac) |
190 ~ 300 |
| Input Frequency (Hz) |
50 ± 10, 60 ± 10 |
| Input Frequency Detection |
Auto-sensing |
| Rated Input Current (A) |
13 |
| Input Power Factor |
0.99 |
| Input Connector Type |
IEC C20 |
Output
|
| Capacity (VA) |
3000 |
| Capacity (Watts) |
2700 |
| On Battery Waveform |
Pure Sine Wave |
| On Battery Voltage(s) (Vac) |
208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1% |
| Output Voltage Setting |
Configurable |
| On Battery Frequency (Hz) |
50 ± 0.5%, 60 ± 0.5% |
| Output Frequency Setting |
Configurable |
| Power Factor |
0.9 |
| Overload Protection |
Internal Current Limiting, Circuit Breaker, Fuse |
| Overload Protection (Line Mode) |
110~120% Load for 1 min, >120% Load Immediately |
| Overload Protection (Battery Mode) |
110~120% Load for 10 sec, >120% Load Immediately |
| Overload Protection (Bypass Mode) |
>130% Load Immediately |
| Harmonic Distortion (Linear Load) |
THD＜3% |
| Harmonic Distortion (Non-linear Load) |
THD＜5% |

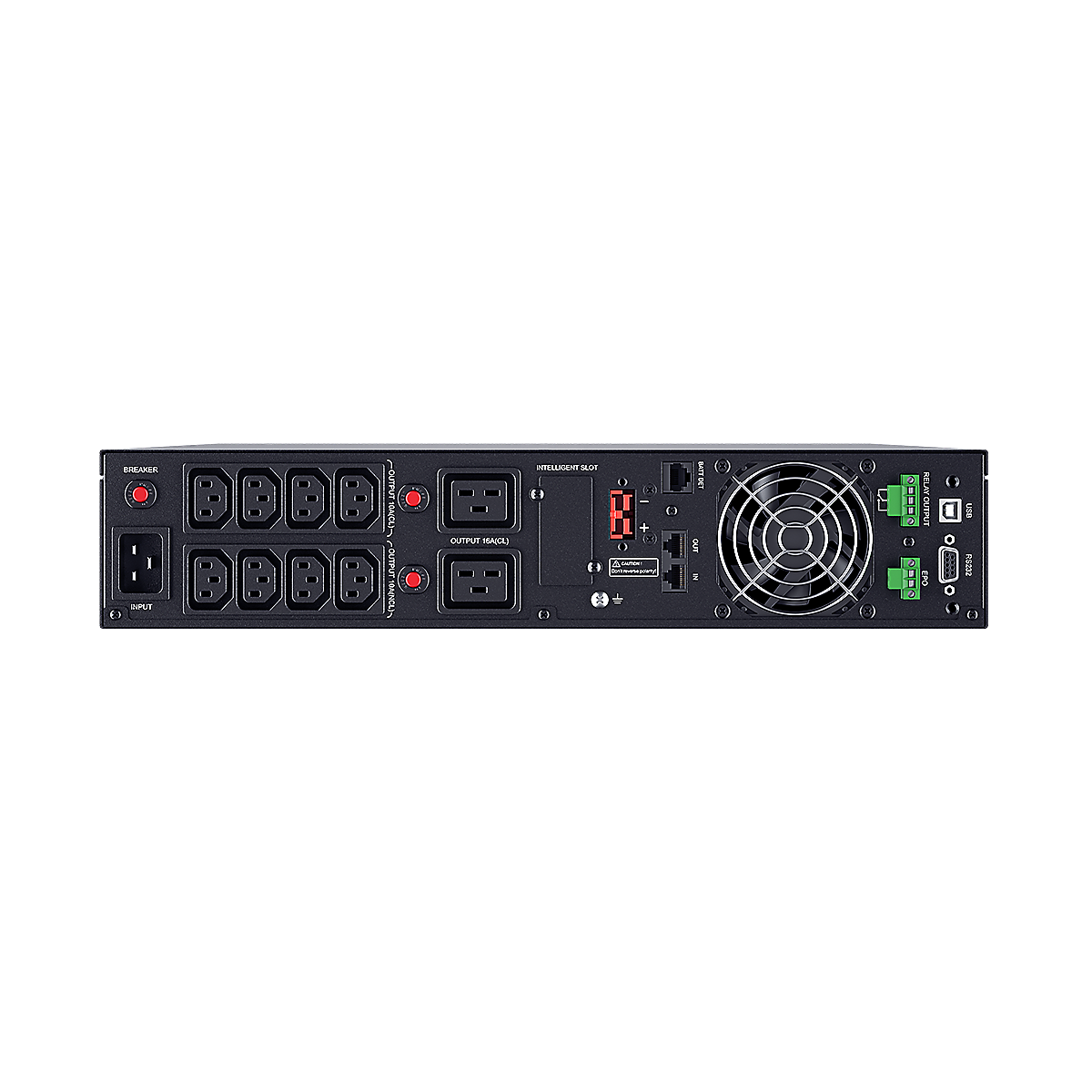

| Outlet(s) - Total |
10 |
| Outlet Type |
IEC C19 x 2, IEC C13 x 8 |
| Outlet(s) - Battery & Surge Protected |
10 |
| Outlet(s) - Critical Load (CL) |
6 |
| Outlet(s) - Non-Critical Load (NCL) |
4 |
| Typical Transfer Time (ms) |
0 |
Battery
|
| Runtime at Half Load (min) |
13.8 |
| Runtime at Full Load (min) |
4.3 |
| Typical Recharge Time (Hours) |
4 |
| Smart Battery Management (SBM) |
Yes |
| User-replaceable |
Yes - Qualified Personnel Only |
| Battery Type |
Sealed Lead-acid |
| Replacement Battery Pack |
RBP0158 |
| RBP Quantity (pcs) |
1 |
| Compatible Extended Battery Module (EBM) |
BPSE72V40ART2U |
| Max. EBM Quantity (pcs) |
3 |
Surge Protection & Filtering
|
| Surge Suppression (Joules) |
388 |
| EMI/RFI Filtration |
Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
Management & Communications
|
| LCD Panel |
Yes |
| LCD Types |
Color LCD |
| HID Compliant USB Port(s) |
1 |
| Serial Port |
RS232 |
| Dry Contact (with Relay) |
Yes |
| Emergency Power Off (EPO) Port |
Yes |
| Power Management Software |
PowerPanel Business (Recommended) |
| SNMP/HTTP Remote Monitoring |
Yes - with optional RMCARD205 |
Physical
|

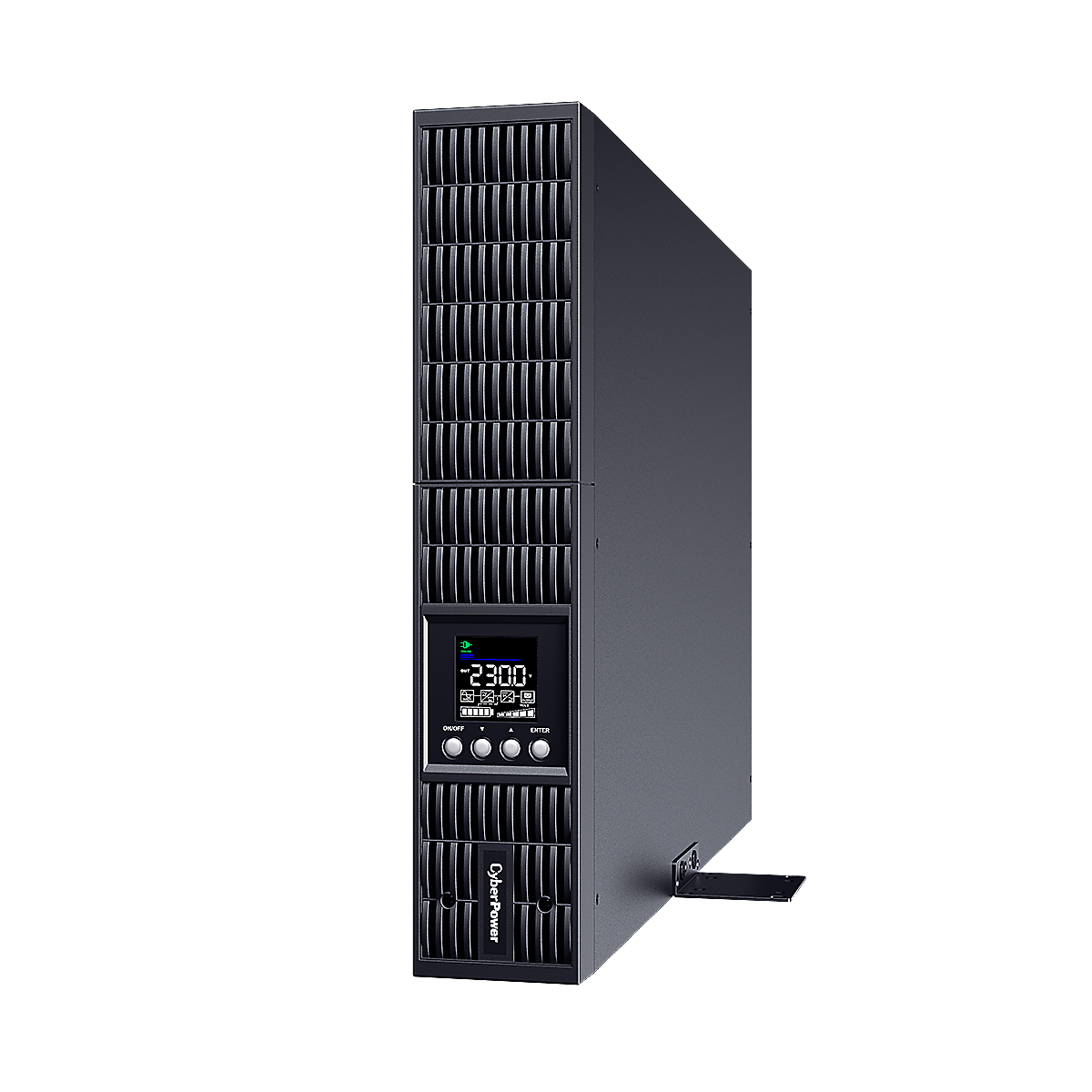

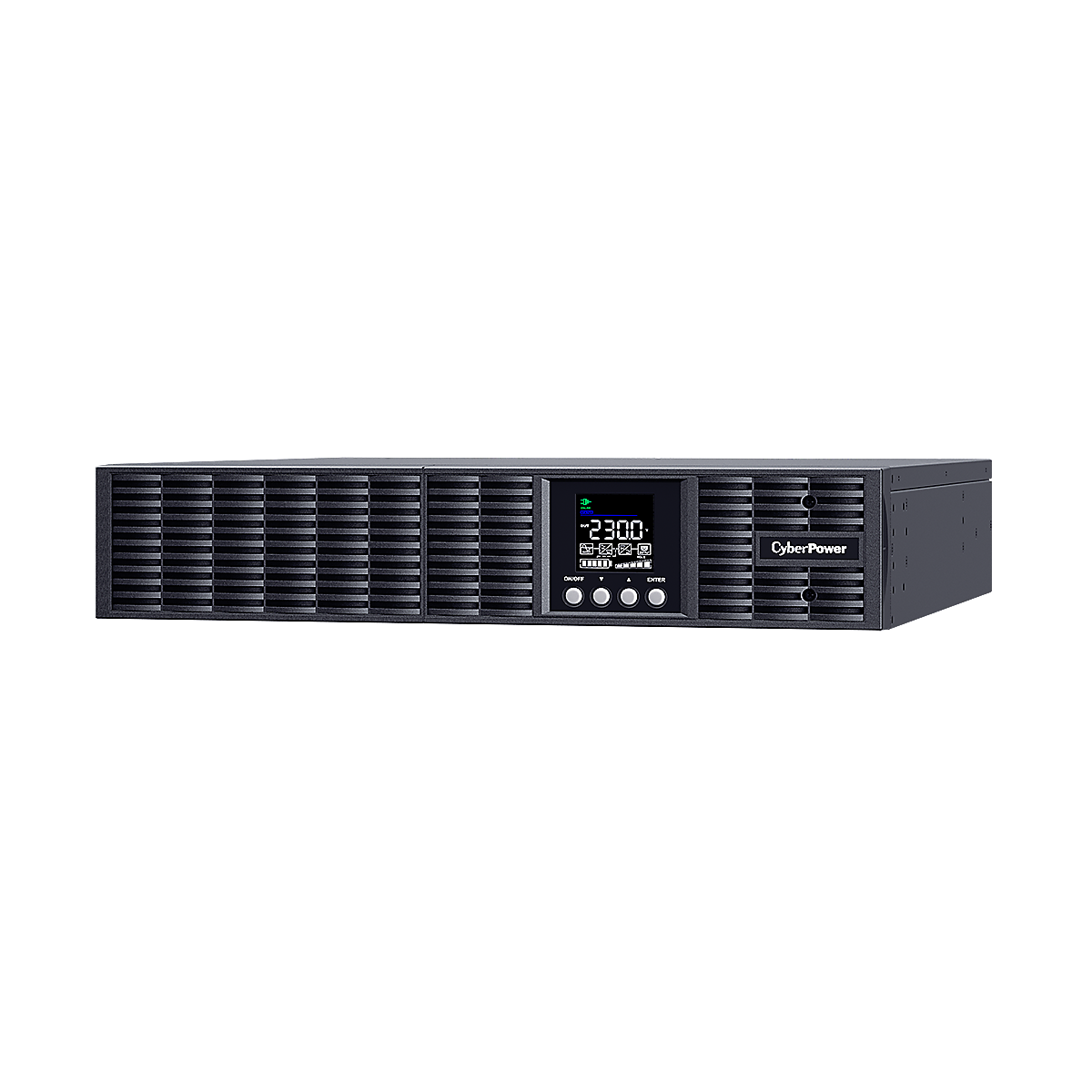

| Form Factor |
Rackmount, Tower |
| Physical Size - UPS Module |
| Dimensions (WxHxD) (mm.) |
438 x 88 x 610 |
| Weight (kg.) |
26.7 |
| Installed Rack Height (U) |
2 |
Environmental
|
| Operating Temperature (°C) |
0 ~ 40 |
| Operating Relative Humidity (Non-condensing) (%) |
20 ~ 90 |
| Online Thermal Dissipation (BTU/hr) |
911 |
Certifications
|
| Certifications* |
CE, EAC |
| RoHS |
Yes |
