EPC612D8A-TB

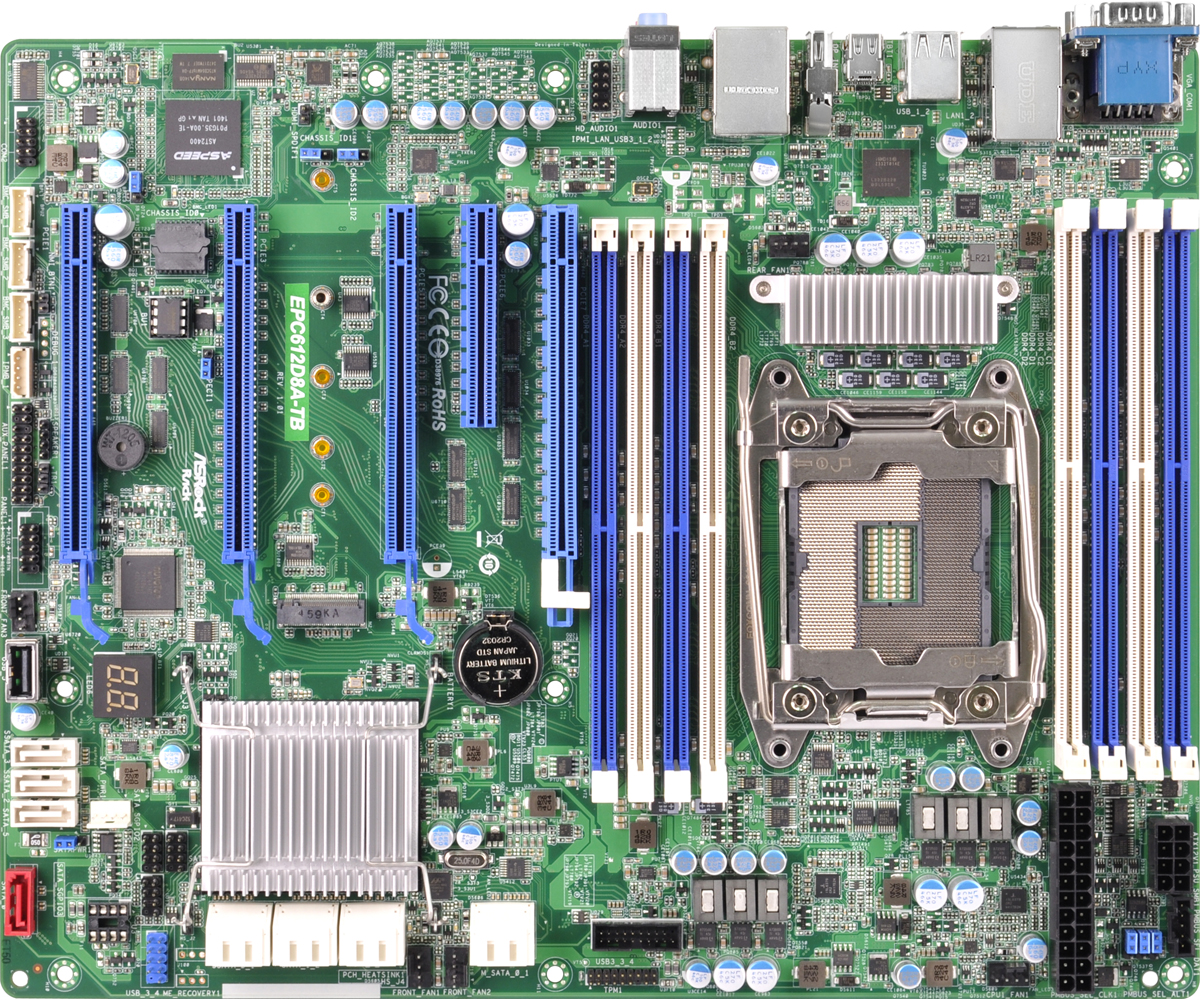

EPC612D8A-TB image click to zoom

  • ПараметриATX, C612 chipset, 1x soc.2011 R3, DDR4-8 DIMMs, N/AxSATA 3G, 11xSATA 6G, 2 (i210+i217)xGLAN, AST2400 IPMI, Mini PCIe x4, ThunderBolt
  • Други:  Intel Xeon processor E5-1600/2600 v3 series; Supports Quad channel DDR4 2133/1866 LR/R/ECC and UDIMM, 8 x DIMM slots; Support 9 SATA3 by C612 (1 support SATA DOM), 2 SATA3 by Marvell 9172; Supports 4x PCIe 3.0 x16, 1x PCIe 3.0 x8 and 1 mini PCIe slot; Int
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 751.98 BGN

Технически данни

MB Physical Status Form Factor - ATX Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU - Intel® Xeon processor E5-1600/2600 v3 series Socket - Single Socket LGA 2011 R3*
*Please use narrow type CPU Cooler Chipset - Intel® C612 System Memory Capacity - 8 DIMM slots Type - Quad Channel memory technology
- Supports DDR4 2133/1866/1600 LR/R/ECC and NVDIMM Voltage - 1.2V Expansion Slot PCIe 3.0 x 16 - 4 slots (PCIE1/PCIE3: x16x0 or x8/x8, PCIE5/PCIE7: x16x0 or x8/x8 ) PCIe 3.0 x 8 - 1 slot (PCIE4: x8 or x4 with mini PCIe x4 ) mini PCIe - 1 (support M.2 (Full and Half size)) (x4) Storage SATA Controller - C612: 10 x SATA3 6Gb/s ( 1x SATA DOM) Additional Storage Controller - Marvell 9172: 2 x SATA3 6Gbps Audio Audio Codec - Realtek ALC1150 Ethernet Interface - 1000 /100 /10 Mbps LAN Controller - 2 x RJ45 by Intel® i210 + Intel® i217LM
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI Management BMC Controller - ASPEED AST2400 IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management GLAN Features - Watch Dog

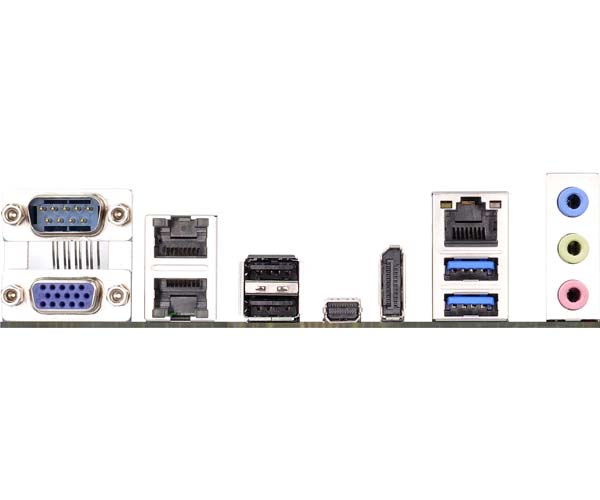

- NMI Graphics Controller - ASPEED AST2400 VRAM - DDR3 16MB Rear Panel I/O VGA Port - 1 x D-Sub USB 2.0 Port - 2 USB 3.0 Port - 2 Lan Port - 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port - 1 (COM1) ThunderBolt - 1 with DP_IN Display Port - 1 Audio - 3 Jack Internal Connector Auxiliary Panel Header - 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED) TPM Header - 1 IPMB Header - 1 Buzzer - 1 Fan Header - 1x CPU Fan, 4x system Fan (4-pin) ATX Power - 1 (24-pin) + 1 (8-pin) USB 3.0 Header - 1 ( support 2 USB 3.0) USB 2.0 Header - 1 ( support 2 USB 2.0) Type A USB 3.0 Port - 1 1394 Header - 1 Front Panel - 1 4 pin 5V box connector - 1 System BIOS BIOS Type - 128Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS Microsot Windows
- Windows 7 (32 / 64 bit)
- Windows 8 (32 / 64 bit)
- Windows 8.1 (32 / 64 bit)
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 (not supported for Marvell 9172) Environment Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
