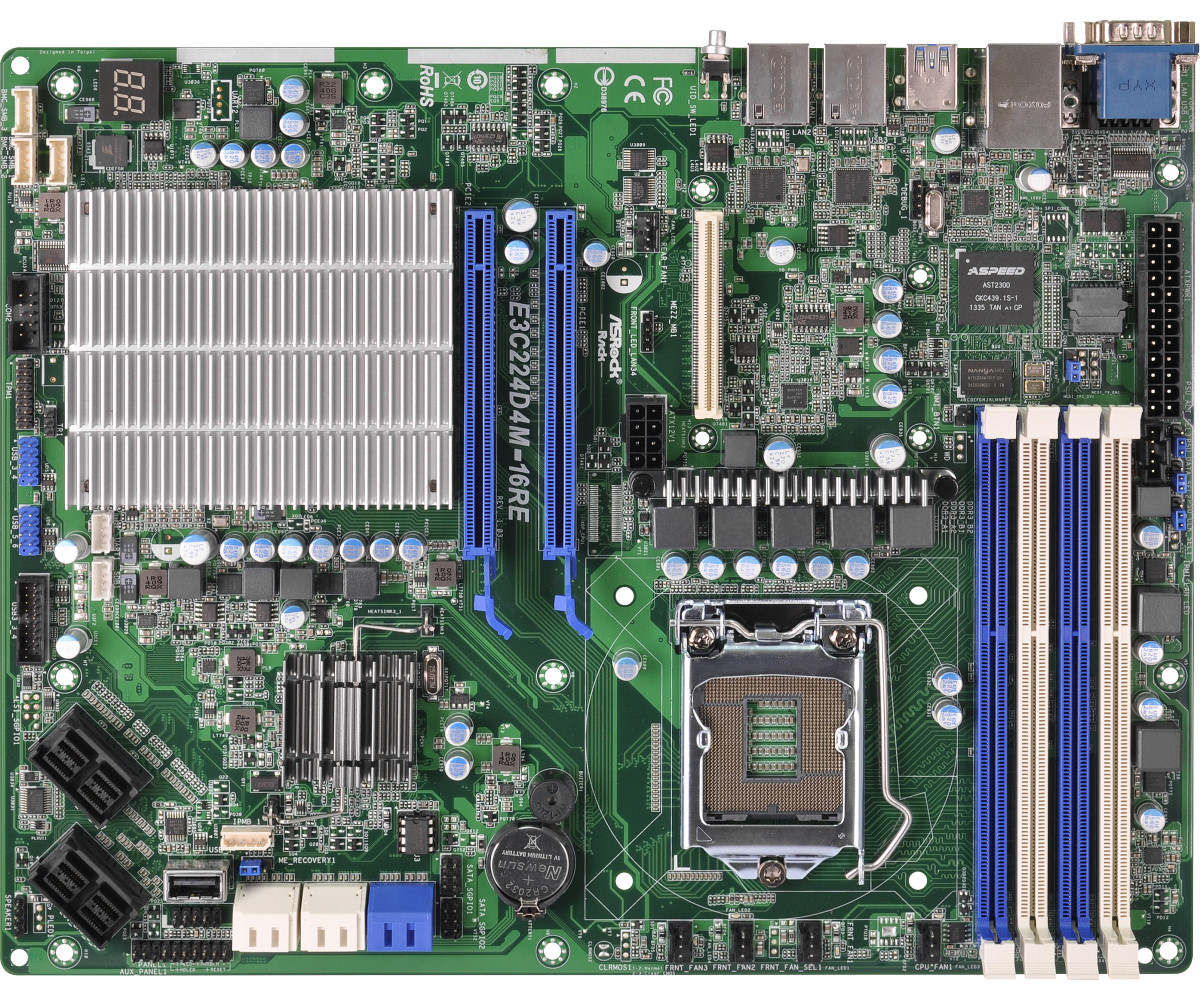

| MB Physical Status |
| Form Factor |
- ATX |
| Dimensions |
- 12'' x 9.6'' (30.5 cm x 24.4 cm) |
| Processor System |
| CPU |
- Single socket H3 (LGA 1150) supports Intel® Xeon processor E3-1200 v3 series & Haswell i3 processors
- Supports Hyper-Threading Technology |
| Socket |
- Single Socket H3 (LGA1150) |
| Chipset |
- Intel® C224 |
| System Memory |
| Capacity |
- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC DIMM |
| Type |
- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC DIMM |
| Voltage |
- 1.5V, 1.35V |
| Expansion Slot |
| PCIe 3.0 x 16 |
- 2 slots (x8) |
| Mezzanine slot |
- 1 slot |
| Storage |
| SATA Controller |
- Intel® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage |
| Additional Storage Controller |
- LSI3008 + Expander 3x24R : 4 x Mini-SAS HD connector (SAS3 12G x16 port)
* Support up to 10-port with RAID 0, 1, 1E, 10, NCQ and Hot Plug |
| Ethernet |
| Interface |
- Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller |
- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
| Management |
| BMC Controller |
- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
| IPMI Dedicated LAN |
- 1 x Realtek RTL8211E for dedicated management LAN |
| Features |
- Watch Dog
- NMI |
| Graphics |
| Controller |
- ASPEED AST2300 |
| VRAM |
- DDR3 16MB |
| Output |
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |

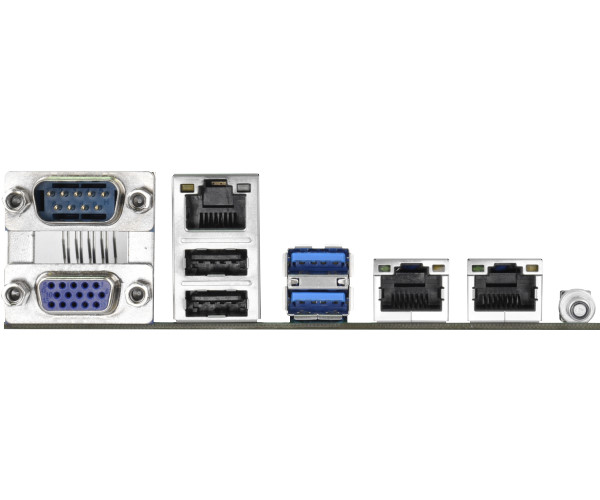

| Rear Panel I/O |
| VGA Port |
- D-sub x 1 |
| USB 2.0 Port |
- 2 |
| USB 3.0 Port |
- 2 |
| Lan Port |
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port |
- 1 (COM1) |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| COM Port Header |
- 1 (COM2) |
| Front Lan LED Connector |
- 1 |
| Auxiliary Panel Header |
- 1 (include chassis intrusion, location button & LED, front LAN LED) |
| TPM Header |
- 1 |
| IPMB Header |
- 1 |
| Buzzer |
- 1 |
| Fan Header |
- 5 x 4-pin |
| ATX Power |
- 1 (24-pin)+1 (8-pin) |
| USB 3.0 Header |
- 1 (each support 2 USB 3.0) |
| USB 2.0 Header |
- 2 (each support 2 USB 2.0) |
| Type A USB 2.0 Port |
- 1 (Vertical) |
| Dr. Debug with LED |
- 1 |
| Mezzanine |
- 1 |
| System BIOS |
| BIOS Type |
- 64Mb AMI UEFI Legal BIOS |
| BIOS Features |
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash |
| Hardware Monitor |
| Temperature |
- CPU Temperature Sensing
- System Temperature Sensing |
| Fan |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS |
| OS |
Microsoft Windows
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.9 / 6.4 (32 / 64 bit)
- CentOS 5.9 / 6.4 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04 / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 |
| Environment |
| Temperature |
- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
