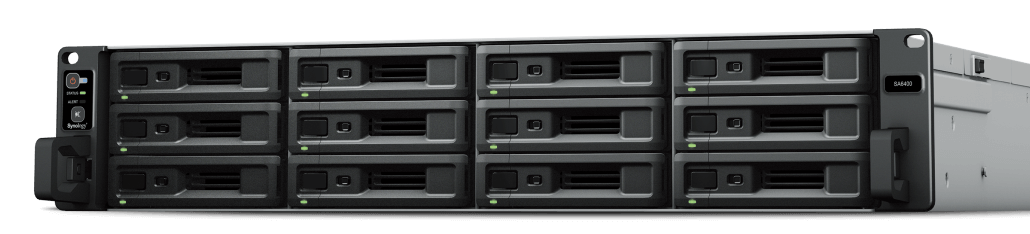

SA6400

SA6400 image click to zoom

  • Параметри: 108-bay Synology NAS server for Large Scale Business (12 bays on base, expandable to 108 with 8xRX1223RP), Rackmount SA6400
  • Други:  AMD EPYC 7272 12 core CPU, 32 GB DDR4 ECC RDIMM(up to 1024GB), 4x 1Gb+2x 10GbE LAN
  • Гаранция: 60m
  • Наличност:  с поръчка
  • Цена с включен ДДС: 21050.40 BGN

Технически данни

CPU
 CPU Model AMD EPYC 7272
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 12-core 2.9 (base) / 3.2 (turbo) GHz
Hardware Encryption Engine (AES-NI) V
Memory
 System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (32 GB x 1)
Total Memory Slots 16
Maximum Memory Capacity 1024 GB (64 GB x 16)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.
Storage
 Drive Bays 12
Maximum Drive Bays with Expansion Unit 108 (RX1223RP x 8)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive* V
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
Management LAN Port 1
Max. number of LAN ports 15
USB 3.2 Gen 1 Port* 2
Expansion Port 8
Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
 Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 16.5 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan V
Power Recovery V
Noise Level* 55.5 dB(A)
Scheduled Power On / Off V
Wake on LAN / WAN V
Power Supply Unit / Adapter 550 W
Redundant Power Supply V
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 180.5 W (Access)
88.56 W (HDD Hibernation)
British Thermal Unit 615.89 BTU/hr (Access)
302.18 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM Specifications
Storage Management
 Maximum Single Volume Size*
  • 1 PB (64 GB memory required, for RAID 6 groups only)
  • 200 TB
Maximum Internal Volume Number 256
SSD Read / Write Cache (White Paper) V
SSD TRIM V
RAID Group V
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • On Peta Volume enabled volumes, Snapshot Replication, SSD caching, shared folder encryption, and compression will not be available. Please refer to this article for more information on limitations.
  • Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Services
 File Protocol SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections 8,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 10,000
Windows Access Control List (ACL) Integration V
NFS Kerberos Authentication V
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
 Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Hybrid Share
 Maximum Hybrid Share Folders 30
High Availability
 Synology High Availability V
Log Center
 Syslog Events per Second 3,000
Virtualization
 VMware vSphere with VAAI V
Windows Server 2016 V
Windows Server 2019 V
Citrix Ready V
OpenStack V
General Specifications
 Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
 V
Central Management System
 V
Synology Chat
 Maximum Number of Concurrent Users 1,500
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
 V
Download Station
 Maximum Concurrent Download Tasks 80
SAN Manager
 Maximum iSCSI Target Number 256
Maximum LUN 512
LUN Clone/Snapshot, Windows ODX V
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 2,200
Maximum Server Performance 5,721,000 emails per day, approx. 174 GB
Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
 DLNA Compliance V
Synology Photos
 Facial Recognition V
Snapshot Replication
 Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station
 Maximum IP cam (Licenses required) 128 (including 2 Free License) (see all supported IP cameras)
Total FPS (H.264) 3840 FPS @ 720p (1280x720)
2800 FPS @ 1080p (1920x1080)
1230 FPS @ 3M (2048x1536)
800 FPS @ 5M (2591x1944)
600 FPS @ 4K (3840x2160)
Total FPS (H.265) 3840 FPS @ 720p (1280x720)
3840 FPS @ 1080p (1920x1080)
2700 FPS @ 3M (2048x1536)
1500 FPS @ 5M (2591x1944)
1120 FPS @ 4K (3840x2160)
Notes
  • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
  • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive
 Recommended Number of Concurrent Sync Clients 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files 100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Maximum Users 3,400
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
 V
Virtual Machine Manager
 Recommended Virtual Machine Instances 24 (Learn more)
Recommended Virtual DSM Number (Licenses required) 24 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 60
