FX2421

FX2421 image click to zoom

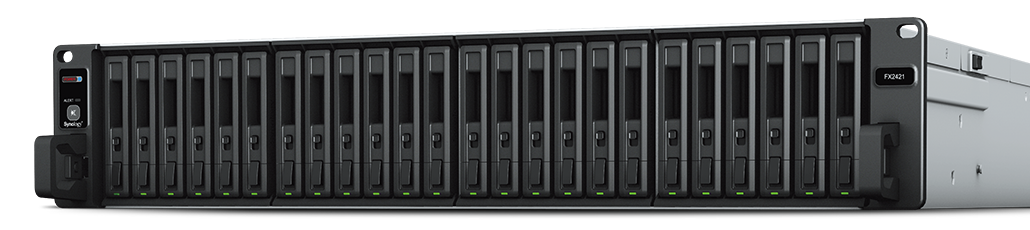

  • Параметри2U 24-bay 2.5" SAS/SATA HDD/SSD redundant SAS JBOD for Synology FlashStation
  • Други:  24x 2.5" HDD, SSD, SAS, SATA bays hotswap, redundant PSU 500W, 1x miniSAS-HD cable
  • Гаранция60m
  • Наличностс поръчка
  • Цена с включен ДДС: 6727.20 BGN

Технически данни

Hardware Specifications

Applied Models

Supports creating volumes across different units
  • FS series:FS6400, FS3600, FS3400
Notes
  • Expansion Unit FX2421 can only be used with identical expansion units.
  • DSM version requirement: 6.2.3-25426-2 or later version.
  • To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays 24
Compatible Drive Type* (See all supported drives)
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 92.16 TB (3.84 TB drive x 24) (Capacity may vary by RAID types)
Hot Swappable Drive V
RAID Management through Synology DSM V
Notes
  • Storage Pool and volume creation require all drives to be listed as compatible on the device model's compatibility list.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

SAS IN-port 1
SAS OUT-port 1

Appearance

Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm
Weight 14.5 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS1317)
Notes The rail kit is sold separately

Power

Power Supply Unit / Adapter 500 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 190.99 W (Access)
British Thermal Unit 651.68 BTU/hr (Access)
Redundant Power Supply (for RP model) V
Notes Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Others

System Fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan V
Noise Level* 57 dB(A)
Notes Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Certification

UL

Warranty

5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment & Packaging

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: MiniSAS-HD X 1
  • Quick Installation Guide X 1

Optional Accessories
