SL201-D12RSE

Параметри: 2U barebone, 2x LGA3647, 24x DDR4 DIMM slots, upto 3TB total RAM, 12x 3.5/2.5" HDD bays, SAS MEZZ 3008, 4x10GbE MEZZ NIIC card
Други: Supports Intel Xeon Scalable processors, 2x PCI-E 3.0 x16 slots and 1x M.2, 2x Intel i350 1GbE + 1GbE Dedicated IPMI port, Delta 550W 1+1 Redundant PSU Platinum, 5x4056mm hot-swap fans

Гаранция: 36 m
Наличност: ограничено количество
Цена с включен ДДС: 3787.80 BGN

Технически данни

System
Model	SL201-D12RSE
HDD	Support 12x 3.5"/2.5" SAS3.0/SATA3.0 HDD; Rear is optional for 4x 3.5"+2x 2.5" or 6x 2.5"hot-swap HDD
Dimension	31.8"17.5"3.42" (DWH)
Processor	Up to 1 or 2 Intel Skylake LGA3647 Xeon processor with OPA (Omni-Path Architecture) support Maximum TDP 165W as standard and conditional up to 205W
Chipset	Intel® PCH server C621 series chipset
CPU	1 or 2 Intel® Xeon® Scalable Processors with LGA3647 socket, support OPA CPU (Up to TDP 165W, optional TDP 205W)
Memory	DDR4 ECC RDIMMs/LRDIMMs server memory, Memory Frequency 1866/2133/2400/2666MHz 12x DDR4 Channel, each Channel has 2x DIMM, 24x DDR4 slot totally Support 8GB, 16GB, 32GB, 64GB, 128GB, up to 3.0TB (M processors)
Controller	Internal storage controller：PCH support RAID 0/1/10&5, optional 12 Gb RAID 0/1/5/6/10/50/60 (1G/2G/4G cache) External storage HBA(not RAID)：12 Gb SAS HBA On-board SSD/SATADOM：1x PCI-e 3.0 x4 M.2 slot、2x Mini SSD Slot(SATA DOM)
HDD Drive	Front：up to 12x hot-swap 3.5"/2.5 SAS/SATA (HDD/SSD) Rear：up to 6x hot-swap 2.5" SAS/SATA (HDD/SSD) Or up to 4x hot-swap 3.5"+ 2x 2.5" SAS/SATA(HDD/SSD) NVMe：up to 12 hot-swap 2.5"NVMe/SAS/SATA(HDD/SSD)
Power Supply	Platinum Level 550W 1+1 hot-swap redundant CRPS, optional 800W, 1300W support 240 and 338 VDC PSU

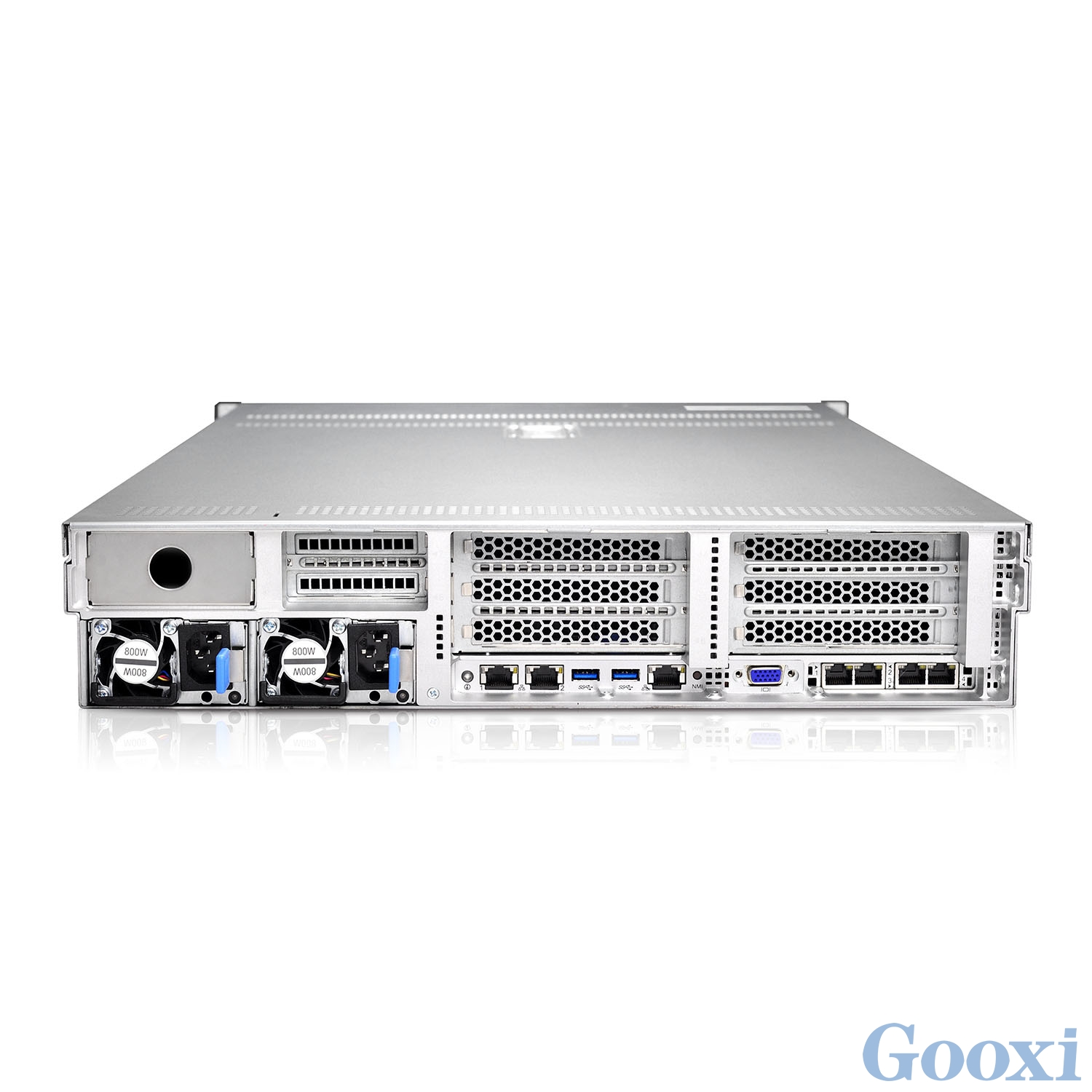

I/O	Front port：VGA、2x USB3.0、1x LCD specified Mini USB; Rear port：VGA、2x USB3.0、1x management interface、2x RJ45 port
PCI-e	Max 2x PCI-e 3.0 slot x16; Up to 2x full-height half-length PCI-e x16 GPU; 1x non-standard PCI-e x8 SAS/RAID mezzanine card + 1x non-standard PCI-e x8 NIC mezzanine card
System Fans	N+1 Hot-swap redundant fan system
Network	Embedded 2x 1GbE port, optional 2x 1Gb/4x 1Gb/ 2x 10Gb/ 4x 10Gb/2x 40Gb NIC card
Security	TPM/TCM(optional)； Chassis Open Intrusion detection； Locked Front Panel； Locked Front Cover Plate；
System Management Interface	Embedded iBMC Management Module, support IPMI、SOL、KVM Over IP、Virtualmedia and etc. Optional LCD Management Module
OS	Microsoft Windows Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、CentOS、Citrix Xen Server、Vmware ESXi、Linux KVM、Ubuntu
Virtualization	VMWare ESXi 6.0
Temperature	Standard Operating Temp：5ºC - 35ºC ( w/o direct sunshine) Expander Operation Temp：5ºC - 40ºC (Configuration Match Limited) Transmit Store Temp：-40ºC - 65ºC
Humidity	Operating Temp 30% - 80%(none-condensation) Store Temp：5% - 95%( none-condensation)
