| Model |

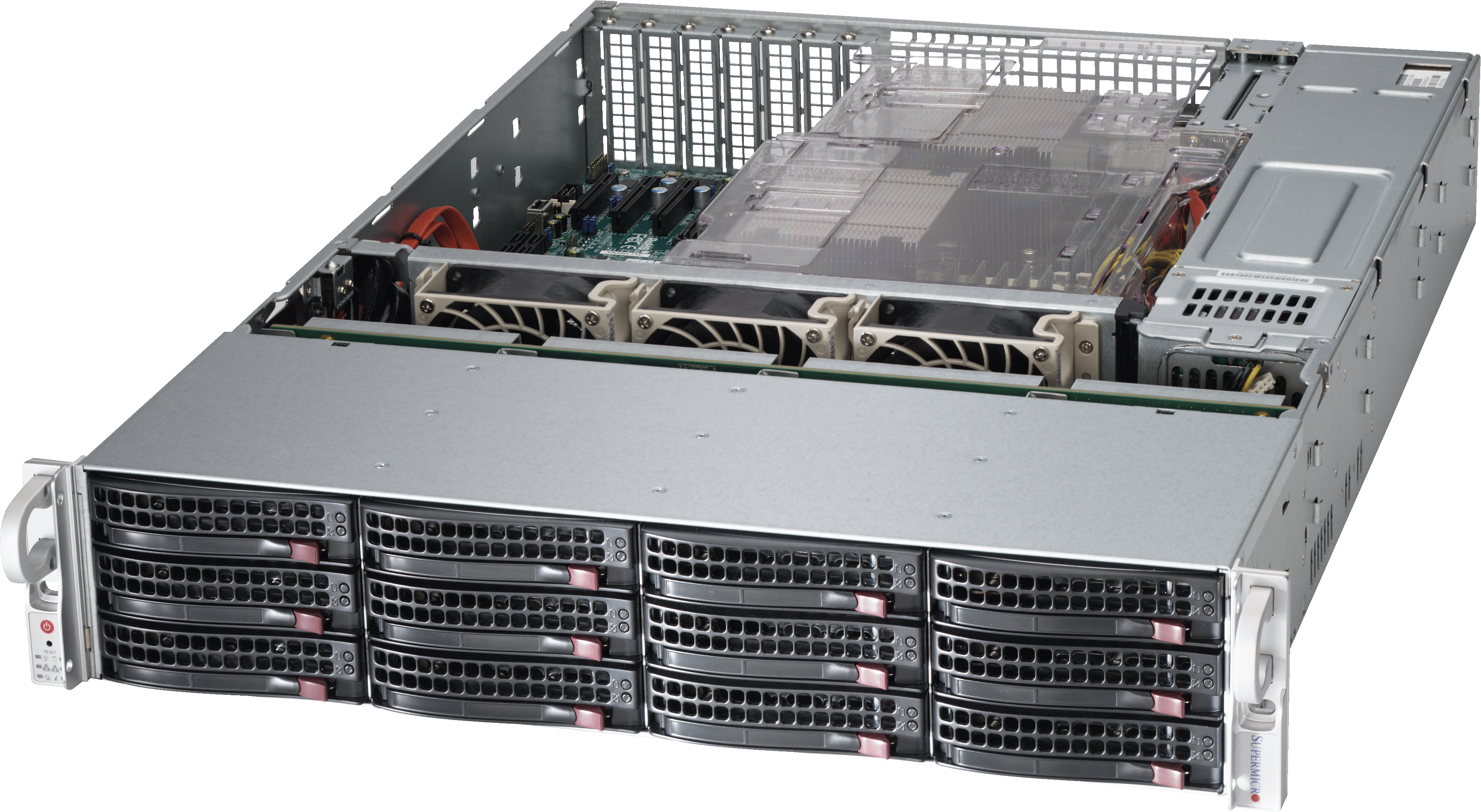

AIS-A7601R2R |
| Form Factor |
Rackmount 2U |
| Processor / max pcs. and model |
2x AMD EPYC 7601 32C/64T (2.2/3.2GHz max Boost, 64MB,180W,SP3)/ max. 2 |
| Memory DIMM slots |
16 memory DIMM slots |
| Max Memory Speed |
2666 MHz |
| Memory / max Memory / channels |
256 GB DDR4-2666 ECC reg. on 16 DIMM slots / max 2TB ECC RDIMM / 8 ch |
| Slots |
(2) PCIe 3.0 x16; (3) PCIe 3.0 x8; (1) PCIe 3.0 x2 (M.2) |
| Bays |
12x 3.5"/2,5" hotswap SAS3 |
| Storage controller |
SAS HBA Card 8 internal ports, low-profile, 12Gb/s per port- Gen-3, 122 HDD max |
| HDD / max HDD |
12x 900GB Seagate 2.5" 15k SAS3 256MB / max. 12 |
| Hot swap |
yes |
| Networking |
4x Intel® 1GbE LAN RJ45 ports i350 (2 on board, 2 on LP board) |
| Power supply |
1200W (200-240V) 80+ Platinum redundant PSU, 100-240VAC 50/60Hz, CE, PFC |
| Chassis |
2U rackmount, 12x 3.5" hotswap bays, single expander SAS3 backplane, LP backplate, 3x hotswap fans |
| Dimension |
19" x 2U x 647mm |
| Other accessories |
rail and cable management arm incl. |
| Management |
Onboard BMC w/ IPMI and iKVM support on dedicated RJ-45 LAN |
| Part No. |
63262 |
