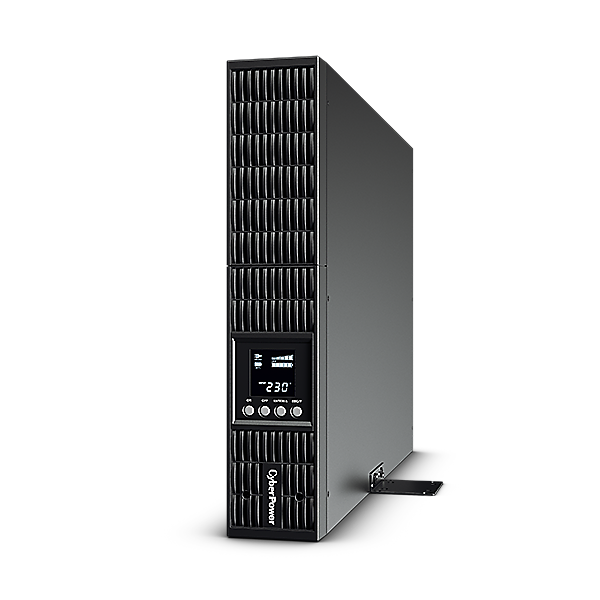

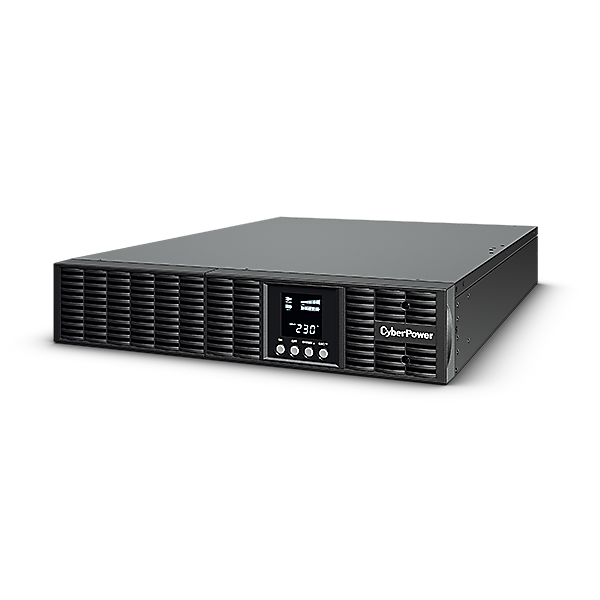

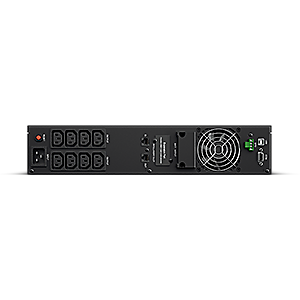

OLS2000ERT2U
- Параметри: Online 2U Rackmount/Tower UPS 2000VA/1800W, синусоидален изход, енергоспестяващ, 8х C13, Output 200~240V Programmable; OLS2000ERT2U
- Други: Pure Sine Wave Output suitable for active-PFC power supplies; USB Connection for PC/NAS; Relay I/O & EPO Ports, Optional SNMP LAN Interface, Programmable Multifunction Color LCD Display, 6 x 7AH/12V Batteries; Advanced Power Management.
- Гаранция: 24 m
- Наличност: ограничено количество
- Цена с включен ДДС: 1598.40 BGN
Технически данни
| Part Number (P/N) | OLS2000ERT2U | |
| Topology | OnLine - Double Conversion | |
| Capacity | VA | 2000VA |
| Watts | 1800W | |
| Input | Nonimal Input Voltage | 230Vac |
| Voltage Range | 0~50% Load for 110 ~ 300 Vac 0~60% Load for 120 ~ 300 Vac 0~80% Load for 140 ~ 300 Vac 0~100% Load for 160 ~ 300 Vac |
|
| Frequency Range | 40 Hz - 70 Hz (Auto Sensing) | |
| Output | Transfer Time | 0 ms |
| Voltage Range (Batt. Mode) | 220, 230, 240 Vac (Configurable) ± 1% | |
| Frequency Range | 50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% | |
| Wave-Form | Pure Sine Wave | |
| Number / Type of Outlests | (8) IEC C13 | |
| Outlets (UPS+Surge) | 8 | |
| Outlets (Surge Only) | N/A | |
| Battery Type | User Replaceable Batteries | Yes - Qualified Personnel Only |
| Batteries (Quantity) / Type | (6) 12V / 7AH | |
| Protection Info | Circuit Protection | Line Mode: Warning only @ 110%Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120%. Battery Mode: Warning only @ 110%>Load>105%, Shutdown after 10sec @ 120%>Load>110%, Shutdown immediately @ Load>120%. On Short Circuit: UPS Output Cut off Immediately or Circuit Breaker Protection 3 |
| Data Line Surge | RJ11 / RJ45 (One In / One Out) | |
| Management | Self-Test | Yes |
| DB9 PC-Connection Port | Yes | |
| USB PC-Connection Port | Yes | |
| Relay Port | No | |
| SNMP/HTTP Network Card | Optional | |
| Monitoring Software | PowerPanel® Business Edition | |
| Extras | Energy Saving Technology | Yes, ECO Mode Efficiency > 95% |
| EPO (Emergency Power Off) | Yes | |
| Battery Expansion Capability | Yes (Up to 3 Battery Packs) | |
| Physical | LCD Info / Connectivity Ports | LCD showing Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode, C/F Mode, Fault, Replace Battery Connectivity Ports: (1) Serial Port (RS232), (1) USB Port, (1) EPO |
| Dimensions (H x W x D) (cm) | 8,8 x 43,8 x 61 | |
| Weight (kg) | 21,2 kg |
