CPS1500PIE

CPS1500PIE image click to zoom

  • ПараметриИнвертор 1500VA/1050W, 140-300 Vac, 24 Vdc, 2x Schuko, AVR, синусоидален изход; работи с външни батерии
  • Други:  Няма батерия в комплекта, работи с външни оловно-кисели батерии
  • Гаранция24 m
  • Наличностограничено количество
  • Цена с включен ДДС: 1137.60 BGN

Технически данни

Model Name CPS1500PIE
General
Capacity (VA) 1500
Capacity (Watts) 1050
Input
Generator Compatibility Yes
Nominal Input Voltage (Vac) 220, 230, 240
Input Voltage Range (Vac) 140 ~ 300 Vac
Input Frequency (Hz) 50 ± 5, 60 ± 5
Input Frequency Detection Auto-sensing
Input Connector Type Hardwire Terminal Block
Output
Output Waveform Pure Sine Wave
Output Voltage(s) (Vac) 220 ± 5%, 230 ± 5%, 240 ± 5%
Output Frequency (Hz) 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR) Double Boost, Single Buck
Overload Protection (On Utility) Circuit Breaker
Overload Protection (On Battery) Internal Current Limiting
Manual Switch Bypass Only
Outlet(s) - Total 3

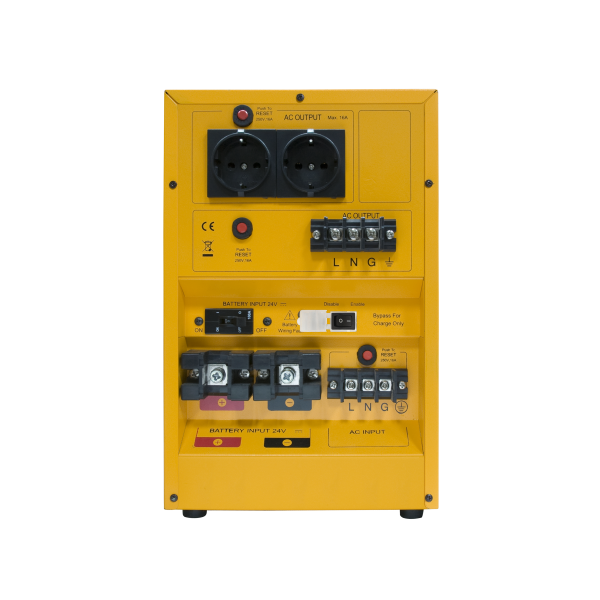

Outlet Type Hardwire Terminal Block x 1, Schuko x 2
Typical Transfer Time (ms) 10
Surge Protection & Filtering
Lightning / Surge Protection Yes
Management & Communications Yes
LCD Panel Power On, Wiring Fault
LED Indicators Battery Mode, Low Battery,
Audible Alarms Overload, Overcharge, Overheat
Physical
Wheels -
Physical Size
Dimensions (WxHxD) (mm.) 206 x 325 x 261
Weight (kg.) 16,40
Environmental
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 95
Certifications
Certifications* CE, EAC, SONCAP
RoHS Yes
External Battery (Optional)
Battery Type Sealed Lead-acid
Battery Voltage (Vdc) 24
