SNV3400-800G

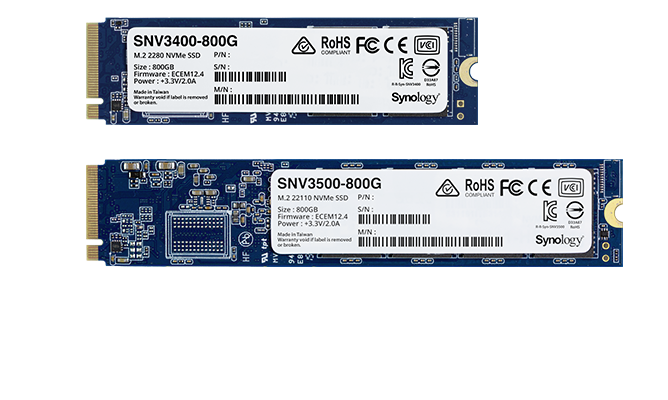

SNV3400-800G image click to zoom

  • Параметри800 GB NVMe M.2 2280 PCIe 3.0 x4
  • Други:  Seq.Read 3100 MB/s, Seq. Write 550 MB/s, 40000 IOPS, 0,68 DWPD
  • Гаранция60 m
  • стар продукт, не се предлага

Технически данни

Hardware Specifications

SNV3400-400G

SNV3500-400G

SNV3400-800G

SNV3500-800G

General Capacity 400 GB 400 GB 800 GB 800 GB
Form Factor M.2 2280 M.2 22110 M.2 2280 M.2 22110
Interface NVMe PCIe 3.0 x4 NVMe PCIe 3.0 x4 NVMe PCIe 3.0 x4 NVMe PCIe 3.0 x4
Performance Sequential Read (128KB, QD32) 3,100 MB/s 3,100 MB/s 3,100 MB/s 3,100 MB/s
Sequential Write (128KB, QD32) 550 MB/s 550 MB/s 1,000 MB/s 1,000 MB/s
Random Read (4KB, QD256) 205,000 IOPS 205,000 IOPS 375,000 IOPS 375,000 IOPS
Random Write (4KB, QD256) 40,000 IOPS 40,000 IOPS 70,000 IOPS 70,000 IOPS
Endurance and Reliability Terabytes Written (TBW)* 500 TB 500 TB 988 TB 988 TB
Drive Writes Per Day (DWPD) 0.68 0.68 0.68 0.68
Mean Time Between Failures (MTBF) 1.8 million hours 1.8 million hours 1.8 million hours 1.8 million hours
Uncorrectable Bit Error Rate (UBER) < 1 sector per 1017 bits read < 1 sector per 1017 bits read < 1 sector per 1017 bits read < 1 sector per 1017 bits read
Power Loss Protection - -
Warranty* 5 Years 5 Years 5 Years 5 Years
Notes
  • Based on the JESD219A enterprise workload.
  • 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)
Power Consumption Supply Voltage 3.3V (± 5%) 3.3V (± 5%) 3.3V (± 5%) 3.3V (± 5%)
Active Read (Typ.) 3.2 W 3.7 W 4.5 W 5.1 W
Active Write (Typ.) 3.2 W 3.4 W 4.5 W 5.0 W
Idle 2.0 W 2.0 W 2.0 W 2.0 W
Notes Power consumption may differ according to configurations and platforms.
Temperature Operating Temperature 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F) -40°C to 85°C (-40°F to 185°F) -40°C to 85°C (-40°F to 185°F) -40°C to 85°C (-40°F to 185°F)
Others Size (Height x Width x Depth) 3.5 mm x 22 mm x 80 mm 4.5 mm x 22 mm x 110 mm 3.5 mm x 22 mm x 80 mm 4.5 mm x 22 mm x 110 mm
Certification
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS

Compatibility

Applied Models
