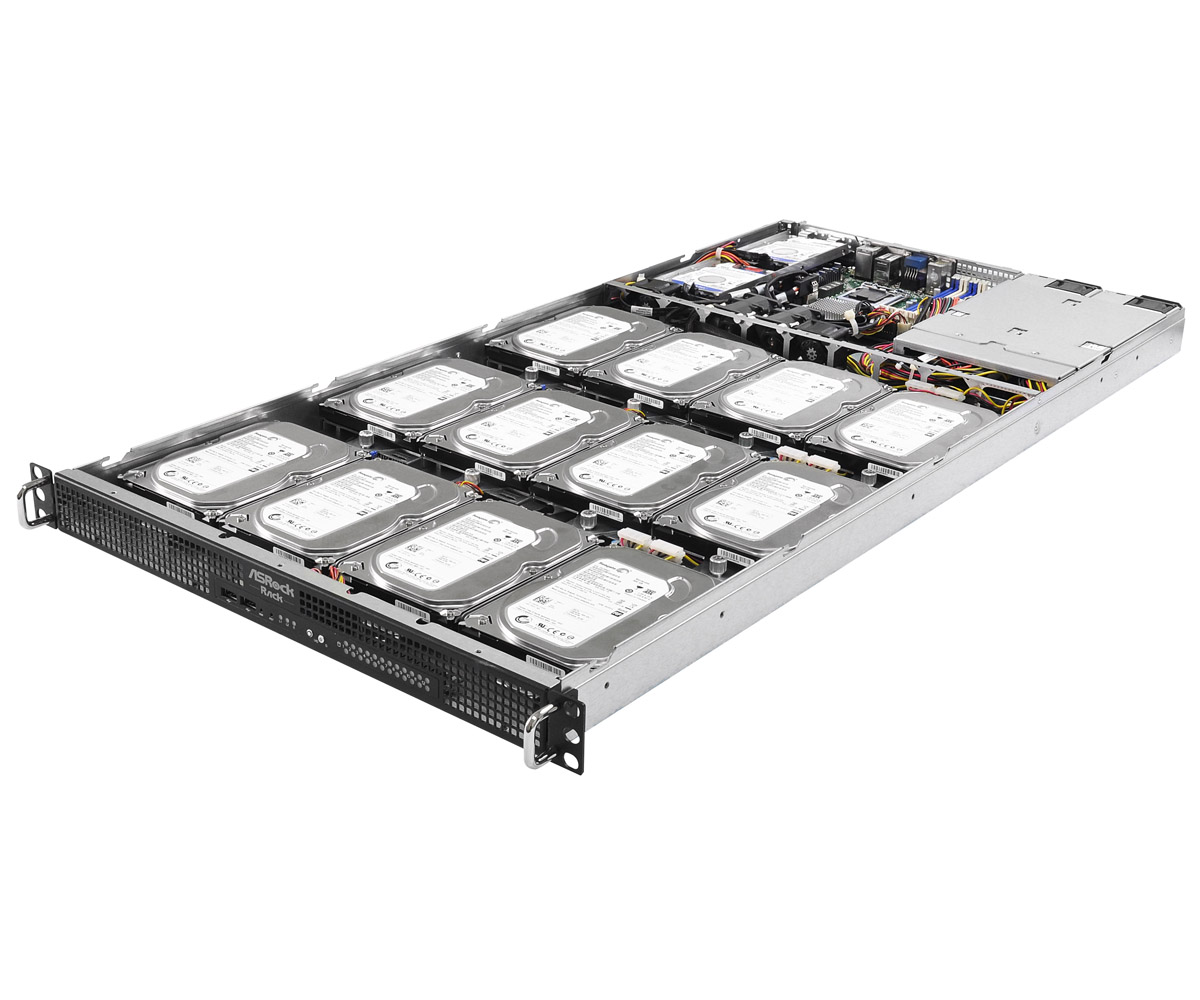

1U12LX-14S

Параметри: 1U Rackmount, 1x LGA 1150, support Intel Xeon E3-1200v3 CPU, 4x DIMM DDR3 ECC, 12x3.5’’/2.5’’ SATA3/SAS2 HDD Hot-Swap Bay +2 x 2.5’’ HDD Bay with 550W Redundant PSU, IPMI
Други: 4 x SATA3 from min SAS 8087 by Intel C224 support RAID 0,1,5,10; 8 x SAS2 from 2 x mini SAS 8087 connector by LSI 2308; 2 x Intel i210, support Dual GLAN; Supports 6 PCIe3.0x8; Integrated IPMI 2.0 and KVM with Dedicated LAN; Support 2x 10G Base-T by Intel

Гаранция: 36m
Наличност: с поръчка
Цена с включен ДДС: 3226.80 BGN

Технически данни

System Form Factor - 1U Rackmount Chassis Model - 1U12LX Dimensions - 889 x 430 x 43.5 mm (35 x 16.9 x 1.7 inches) Support MB - E3C224D4I-14S (Extend Mini-ITX, 8.4'' x 6.7'')

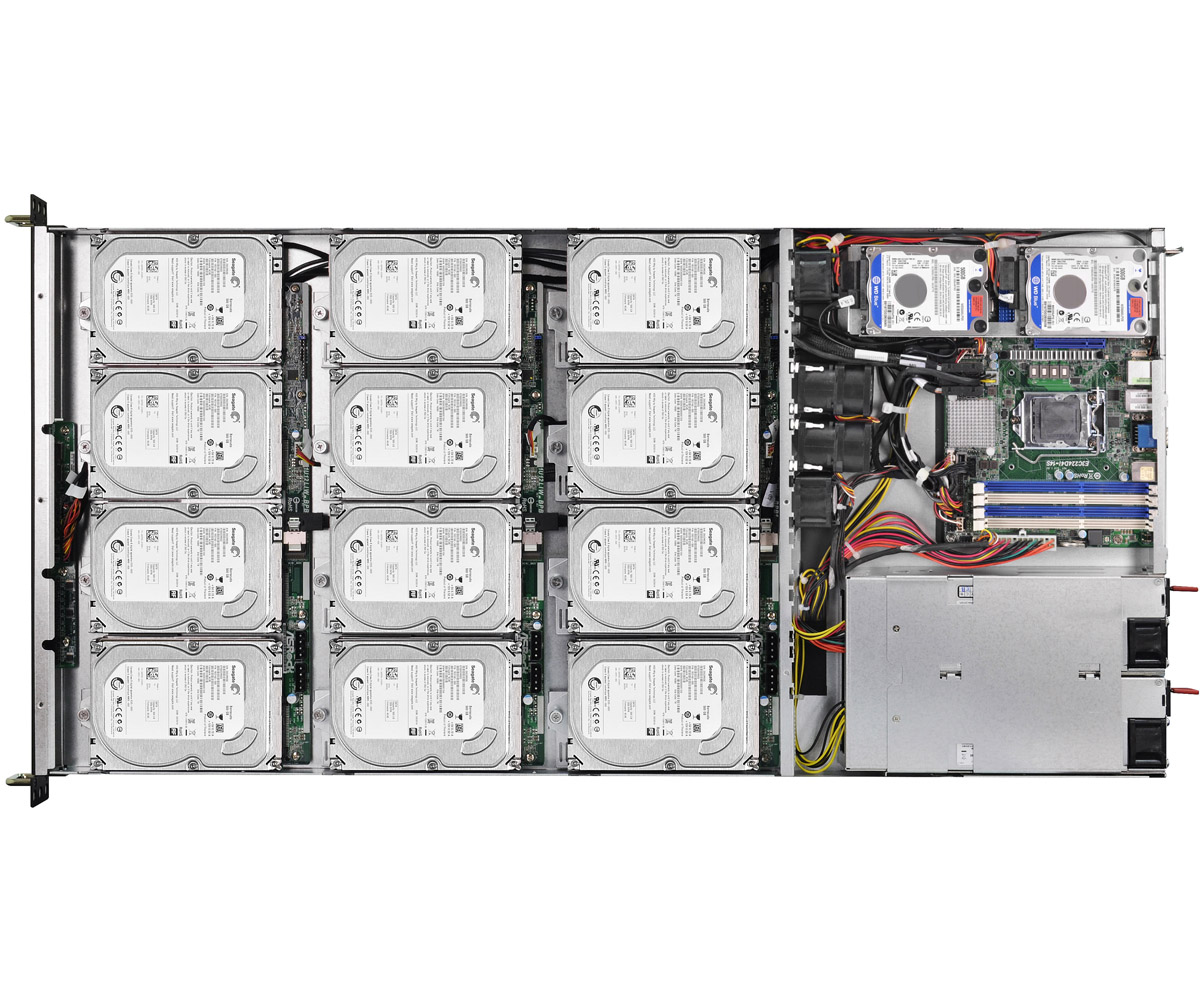

External Drive Bay Front Side Drive Bay - 12 Bay 3.5''/2.5'' SATA3/SAS2 HDD Hot-Swap Bay Front Side Backplane - 3 x backplane with 1 mini SAS 8087 connector to 4 SATA3/SAS2 Internal Side - 2 Bay 2.5'' SATA HDD (6Gb/s) Internal Side Backplane - n/a

Power Supply Type - 1U, Redundant Output Watts - 550W Efficiency - Platinum

System Fan Fan - 40x56 mm Fan*2 + 40x28 mm Fan *2

MB Physical Status Form Factor - Extended mini ITX Dimensions - 8.4" x 6.7'' (21.3 cm x 17 cm)

Processor System CPU - Single socket H3 (LGA 1150) supports Intel^® Xeon processor E3-1200 v3 series & Haswell i3 processors
- Supports Hyper-Threading Technology Socket - Single Socket H3 (LGA1150) Chipset - Intel^® C224

System Memory Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC UDIMM Type - Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC UDIMM Voltage - 1.5V, 1.35V

Expansion Slot PCIe 3.0 x 16 - 1 slot (x8)

Storage SATA Controller - Intel^® C224 : 4 x SATA3 6.0 Gb/s (from mini SAS connector), 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel^® Rapid Storage SAS Controller - LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector)

Ethernet Interface - Gigabit LAN 10/100/1000 Mb/s LAN Controller - 2 x Intel^® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Management BMC Controller - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN Features - Watch Dog

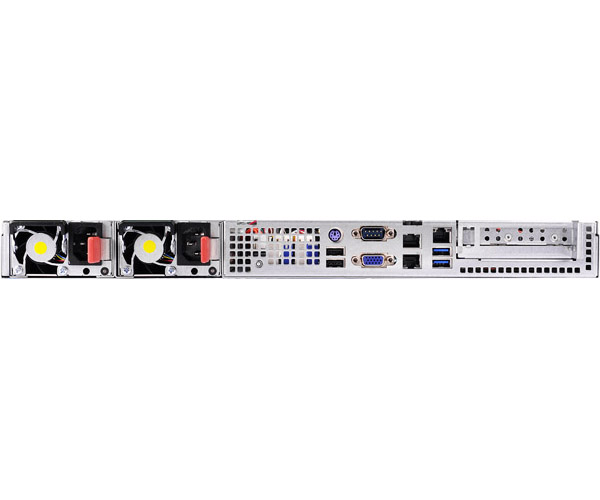

- NMI Graphics Controller - ASPEED AST2300 VRAM - DDR3 16MB Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse - 1 VGA Port - D-sub x 1 USB 2.0 Port - 2 USB 3.0 Port - 2 Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port - 1 (COM1) UID Button/UID LED - 1 Internal Connector Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, and front LAN LED) IPMB Header - 1 Fan Header - 6 x 4-pin ATX Power - 1 (24-pin) + 1 (4-pin) USB 3.0 Header - 1 (each support 2 USB 3.0) USB 2.0 Header - 1 (each support 2 USB 2.0) Type A USB 2.0 Port - 1 System BIOS BIOS Type - 64Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS Microsoft Windows
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.9/6.4 (32 / 64 bit)
- CentOS 5.9 / 6.4 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 Environment Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
