Q87WS-DL

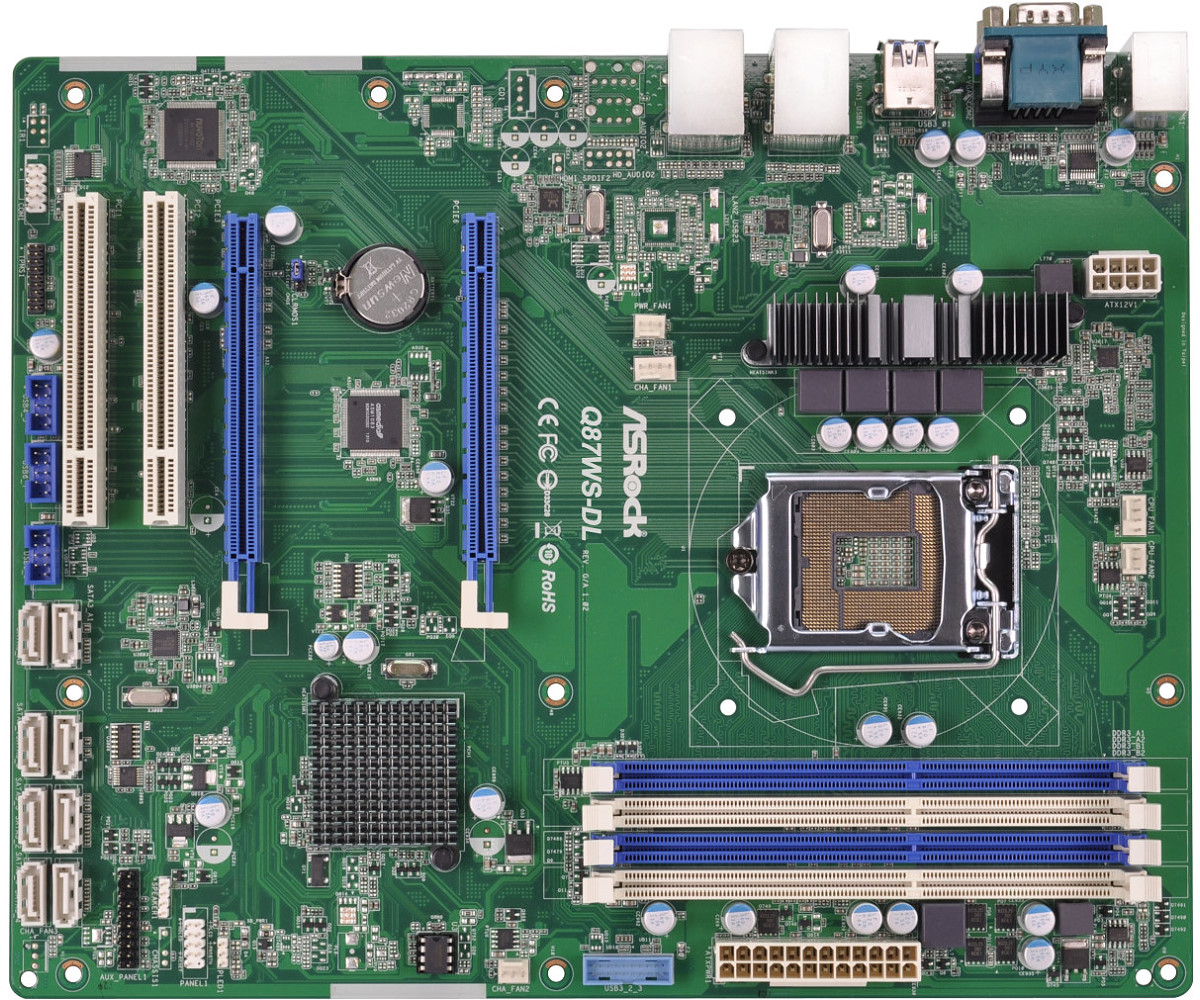

  • Q87WS-DL image
  • Q87WS-DL image
Q87WS-DL image click to zoom

  • Параметри: ATX, Q87 chipset, 1x soc.1150, DDR3-4 DIMMs, 8xSATA 6G, 2xGLAN, no IPMI
  • Други:  Supports New 4th and 4th Generation Intel Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 UDIMM, max. 32GB; 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCI; 6 x SATA3 by Intel Q87, support RAID 0,1,5,10; 2 x SATA3 by ASMedia 1
  • Гаранция: 36m
  • Наличност:  с поръчка
  • Цена с включен ДДС: 354.00 BGN

Технически данни

MB Physical Status Form Factor - ATX Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU - Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology
- Supports Intel® Turbo Boost 2.0 Technology

*Xeon processor E3-1200 v3 series processor support is an extended advantage provided by ASRock Rack. It is out of warranty, user's discretion is required.
Socket - Single socket H3 (LGA1150) Chipset - Intel® Q87
- Supports Intel® vPro™ Technology
- Supports Intel® Active Management Technology 9.0 System Memory Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM Type - Dual Channel DDR3 1600/1333 UDIMM
- Supports DDR3 1600/1333 Voltage - 1.5V, 1.35V Expansion Slot PCIe 3.0 x 16 - 1 slot (PCIE6: x16 mode) PCIe 2.0 x 16 - 1 slot (PCIE2 : x4 mode) PCI - 2 slots Storage SATA Controller - Intel® Q87 : 6 x SATA3 6.0 Gb/s, support RAID 0,1,5,10 Additional Storage Controller - ASMedia 1061 : 2 x SATA3 6.0 Gb/s Ethernet Interface - Gigabit LAN 10/100/1000 Mb/s LAN Controller 1 x Intel® i210 + 1 x Intel® i217LM ( with vPro support)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az

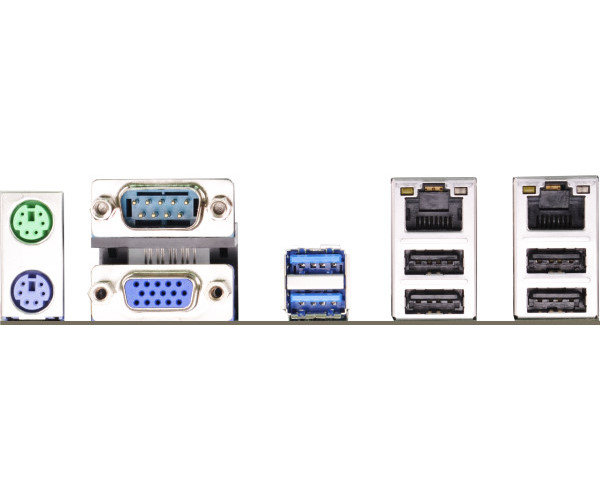

- Supports PXE Graphics Controller - Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated Rear Panel I/O PS/2 KB/Mouse - 2 VGA Port - D-sub x 1 USB 2.0 Port - 4 USB 3.0 Port - 2 Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port - 1 Internal Connector COM Port Header - 1 (COM1) Power LED Header - 1 Auxiliary Panel Header - 1 (include chassis intrusion, front LAN LED) TPM Header - 1 Fan Header - 6 (2 x 4-pin, 4 x 3-pin) ATX Power - 1 (24-pin) + 1 (8-pin) USB 3.0 Header - 1 (each supports 2 USB 3.0) USB 2.0 Header - 3 (each supports 2 USB 2.0) System BIOS BIOS Type - 64Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Support OS OS Windows:
- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit
Linux:
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64) Feature Unique Features - ASRock Instant Flash Environment Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
