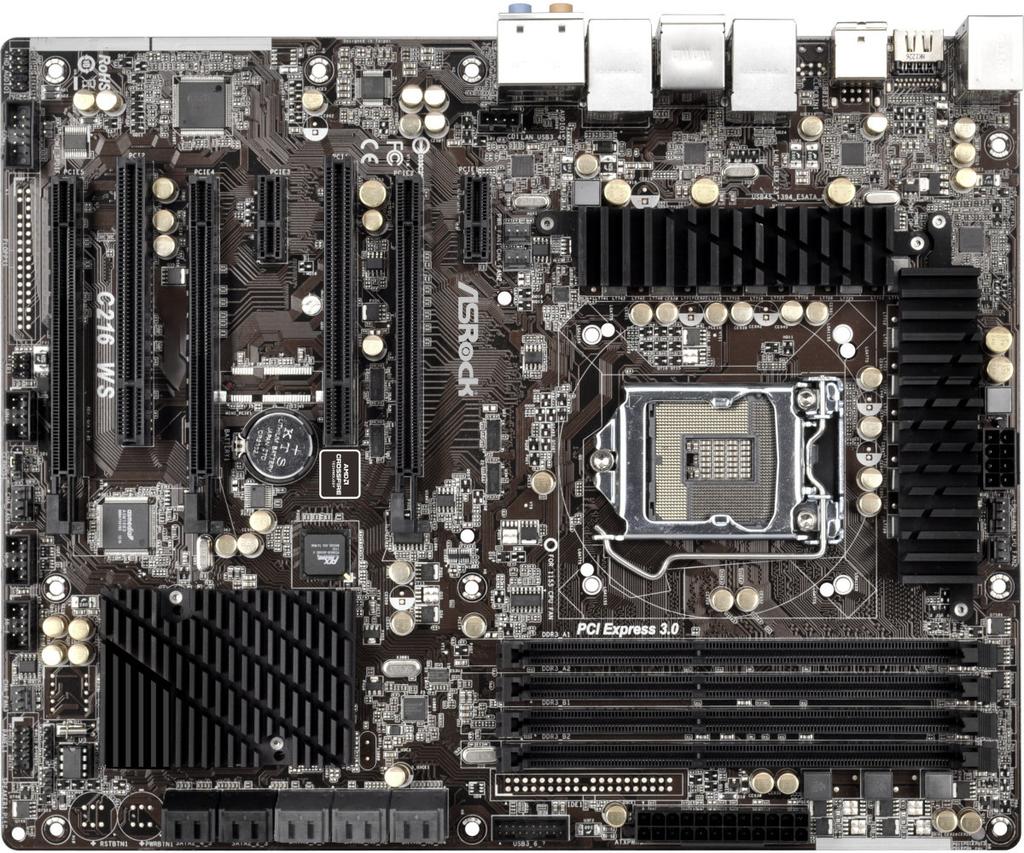

| MB Physical Status |
| Form Factor |
- ATX |
| Dimensions |
- 12'' x 9.6'' (30.5 cm x 24.4 cm) |
| Processor System |
| CPU |
- Single socket H2 (LGA 1155) supports Intel® 3rd and 2nd Core™ i7 / i5 / i3 and Pentium / Celeron and Intel® Xeon E3-1200 & v2 Series
- Supports IntelK-Series CPU
- Supports Hyper-Threading Technology
- Supports IntelTurbo Boost 2.0 Technology |
| Socket |
- Single socket H2 (LGA1155) |
| Power Design |
- 8 + 4 Power Phase Design |
| Chipset |
- Intel® C216 |
| System Memory |
| Capacity |
- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM |
| Type |
- Dual Channel DDR3 1600/1333 UDIMM and ECC UDIMM
- Supports DDR3 1600/1333 |
| Voltage |
- Supports 1.35V to 1.60V |
| Expansion Slot |
| PCIe 3.0 x 16 |
- 2 slots ( PCIE2/PCIE4 : x16/x0 or x8/x8 mode) |
| PCIe 2.0 x 16 |
- 1 slot (PCIE5: x4 mode) |
| PCIe 2.0 x 1 |
- 2 slots |
| PCI |
- 2 slots |
| Storage |
| SATA Controller |
- IntelC216 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0Gb/s |
| Additional Storage Controller |
- ASMedia ASM1061: 4 x SATA3 6.0 Gb/s |
| Audio |
| Audio Codec |
- ALC892 |
| Ethernet |
| Interface |
- Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller |
- 2 x Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
| Graphics |
| Controller |
- IntelHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated
|
| VRAM |
- Max. shared memory 1760MB |
| Output |
- Supports D-Sub with max. resolution up tomax. 1920x1200 @ 60Hz |

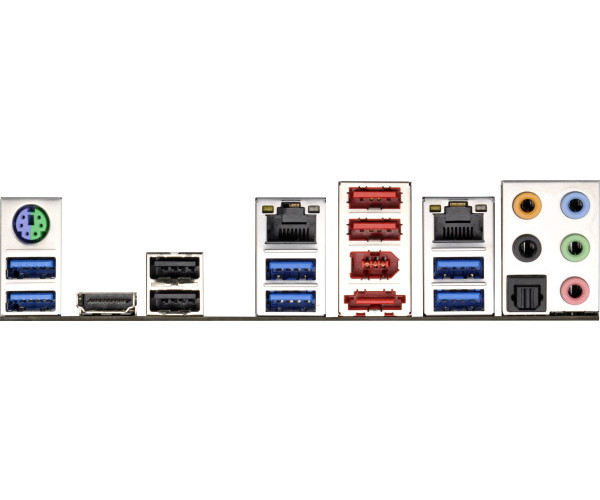

| Rear Panel I/O |
| PS/2 KB/Mouse |
- 1 |
| VGA Port |
- 1 x HDMI |
| USB 2.0 Port |
- 4 |
| USB 3.0 Port |
- 6 |
| eSATA Port |
- 1 |
| Lan Port |
- 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Audio |
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| 1394 |
- 1 |
| SPDIF |
- 1 |
| Internal Connector |
| IR Header |
- 1 |
| COM Port Header |
- 1 (COM1) |
| Power LED Header |
- 1 |
| Chassis Intrusion Header |
- 1 |
| Auxiliary Panel Header |
- 1 (include chassis intrusion, front LAN LED) |
| Fan Header |
- 5 (2 x 4-pin, 3 x 3-pin) |
| ATX Power |
- 1 (24-pin) + 1 (8-pin) |
| USB 3.0 Header |
- 1 (each support 2 USB 3.0) |
| USB 2.0 Header |
- 3 (each support 2 USB 2.0) |
| 1394 Header |
- 1 |
| Front Panel |
- 1 |
| Dr. Debug with LED |
- 1 |
| System BIOS |
| BIOS Type |
- 64Mb AMI UEFI Legal BIOS with GUI support |
| BIOS Features |
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment |
| Hardware Monitor |
| Temperature |
- CPU Temperature Sensing
- Chassis Temperature Sensing |
| Fan |
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Support OS |
| OS |
- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit compliant |
| Feature |
| Unique Features |
- ASRock Instant Flash |
| Environment |
| Temperature |
- Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC |
