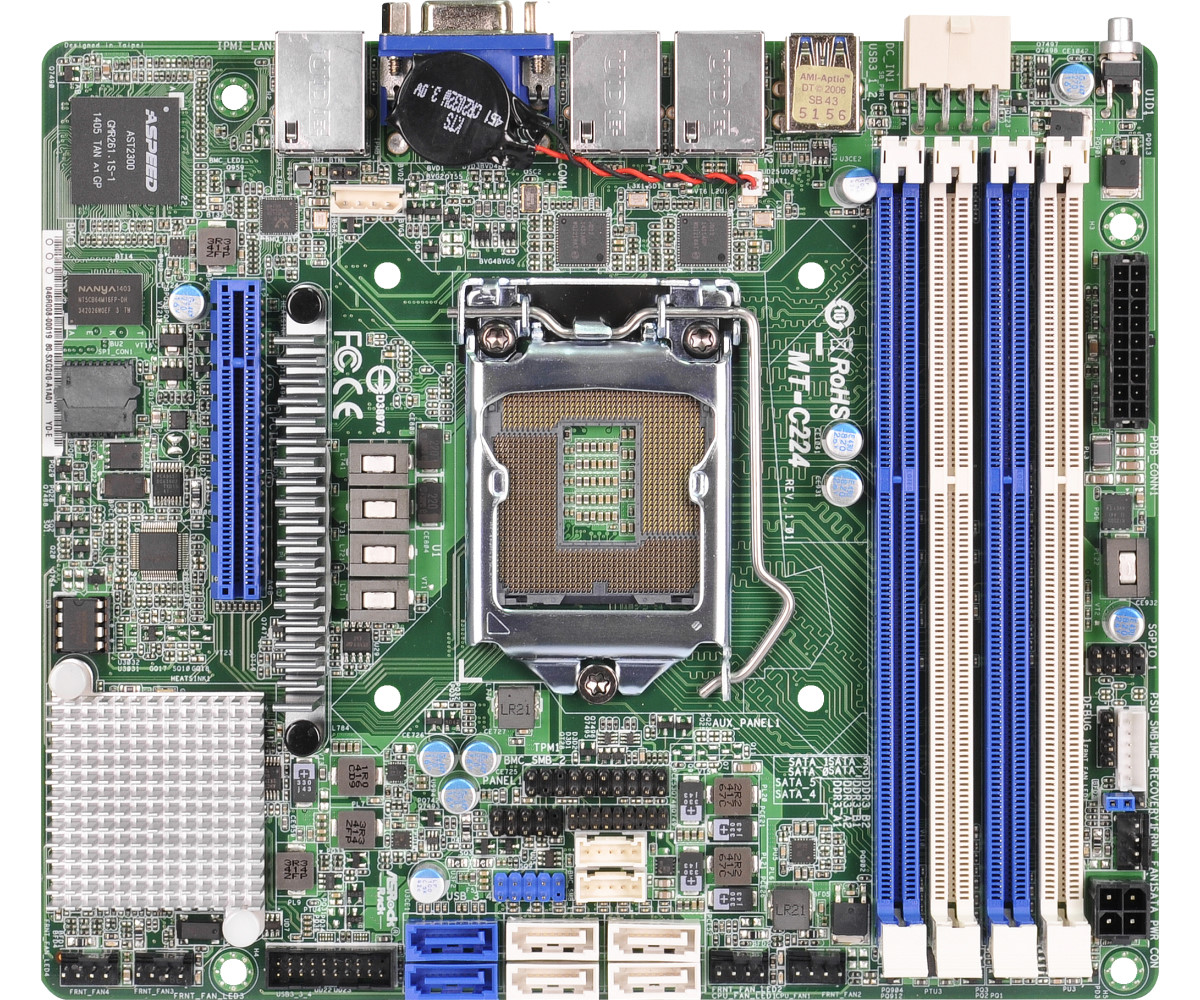

| MB Physical Status |
| Form Factor |
- Extended mini ITX |
| Dimensions |
- 8.8'' x 6.7'' (22.4 cm x 17.0 cm) |
| Processor System |
| CPU |
- Single socket H3 (LGA 1150) supports Intel® Xeon processor E3-1200 v3 series & Haswell i3 processors
- Supports Hyper-Threading Technology |
| Socket |
- Single Socket H3 (LGA1150) |
| Chipset |
- Intel® C224 |
| System Memory |
| Capacity |
- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC UDIMM |
| Type |
- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC UDIMM |
| Voltage |
- 1.5V, 1.35V |
| Expansion Slot |
| PCIe 3.0 x 8 |
- 1 slot |
| Storage |
| SATA Controller |
- Intel® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage |
| SAS Controller |
- Marvell SE9172: 2 x SATA3 6.0 Gb/s |
| Ethernet |
| Interface |
- Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller |
- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
| Management |
| BMC Controller |
- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
| IPMI Dedicated LAN |
- 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics |
| Controller |
- ASPEED AST2300 |
| VRAM |
- DDR3 16MB |

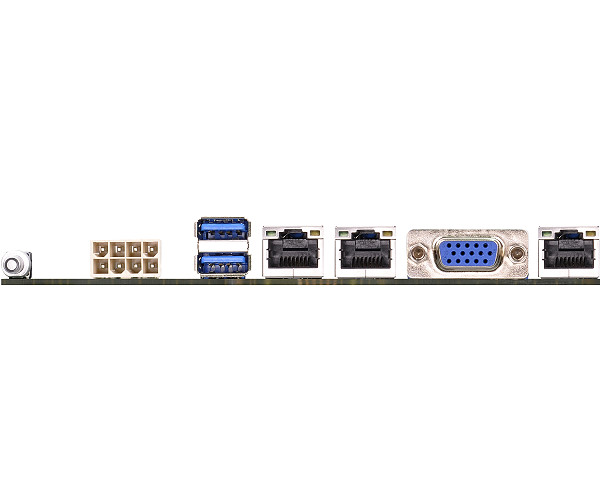

| Rear Panel I/O |
| VGA Port |
- 1 x D-Sub |
| USB 3.0 Port |
- 2 |
| Lan Port |
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port |
- 1 (COM1) |
| UID Button/UID LED |
- 1 |
| DC in |
- 1 x ATX 8-pin connector |
| Internal Connector |
| Auxiliary Panel Header |
- 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header |
- 1 |
| IPMB Header |
- 1 |
| Fan Header |
- 5 x 4-pin |
| USB 3.0 Header |
- 1 (each supports 2 USB 3.0 ports) |
| USB 2.0 Header |
- 1 (each supports 2 USB 2.0 ports) |
| Type A USB 2.0 Port |
- 1 |
| NMI Button |
- 1 |
| BMC_SMBUS |
- 2 |
| SGPIO |
- 1 |
| PDB SMBUS |
- 1 x 2.0mm 6-pin connector |
| Power Connector |
- 1 (18-pin) + 1 (4-pin) |
| System BIOS |
| BIOS Type |
- 64Mb AMI UEFI Legal BIOS |
| BIOS Features |
- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash |
| Hardware Monitor |
| Temperature |
- CPU Temperature Sensing
- System Temperature Sensing |
| Fan |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: SIO: +12V, +5V BMC: +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB, DC_IN 12V |
| Support OS |
| OS |
Microsoft Windows
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.9/6.4 (32 / 64 bit)
- CentOS 5.9 / 6.4 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 |
| Environment |
| Temperature |
- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
