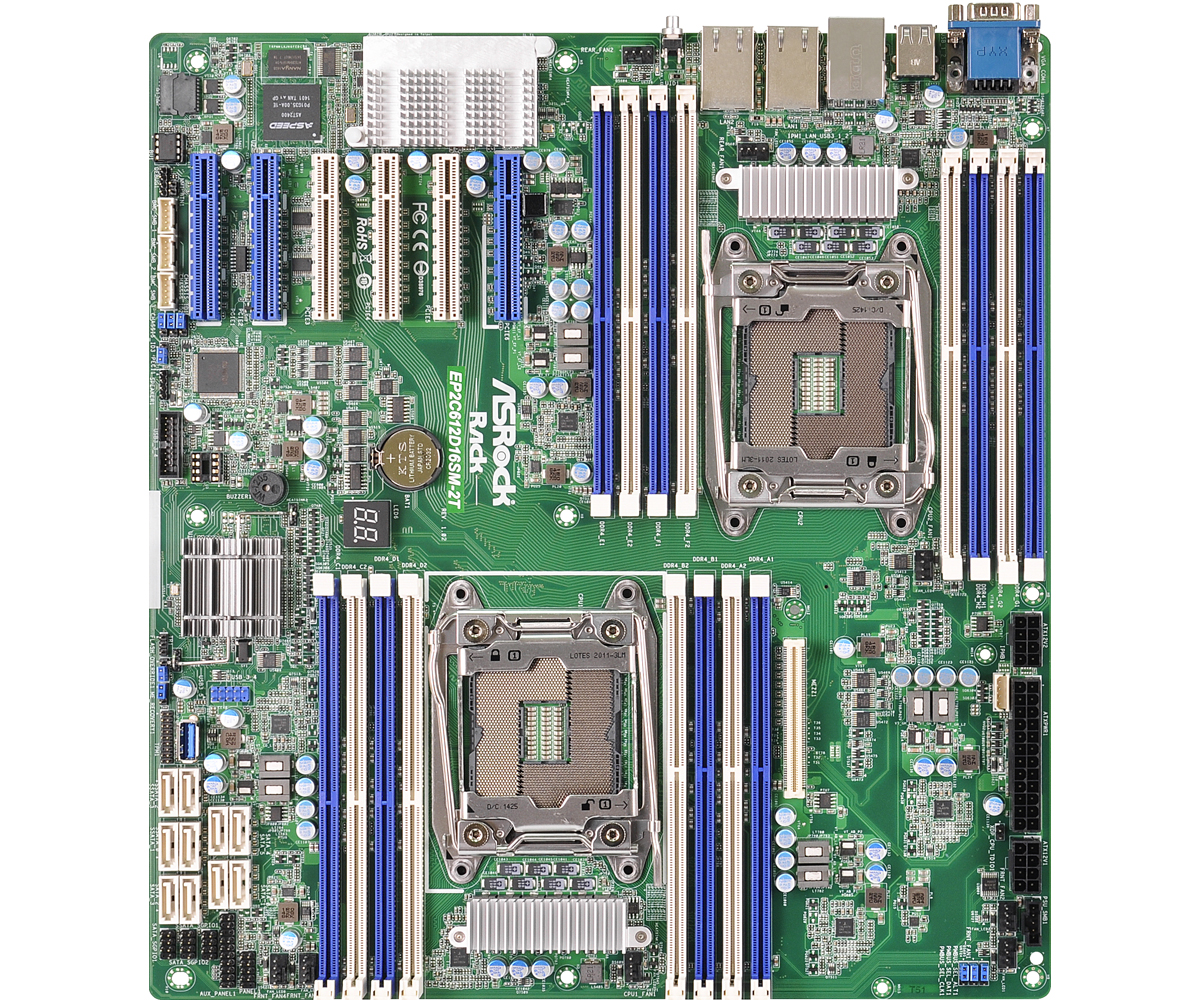

EP2C612D16SM-2T

Параметри: E-ATX, C612 chipset, 2x soc.2011 R3, DDR4-16 DIMMs, N/AxSATA 3G, 10xSATA 6G, Storage Mezz SAS, N/AxGLAN, 2*10G Base-T 10GLAN optional, AST2400 IPMI
Други: support Intel Xeon processor E5-2600/4600 & v3 series; Supports DDR4 2133/1866/1600 LR DIMM, Rigistered, ECC DIMM and NVDIMM, total 16 x DIMM; Supports 10 x SATA3 6.0 Gb/s by INTEL C612; Supports 6 PCIe3.0x8; Integrated IPMI 2.0 and KVM with Dedicated LAN

Гаранция: 36m
Наличност: с поръчка
Цена с включен ДДС: 1239.57 BGN

Технически данни

MB Physical Status Form Factor - SSI EEB Dimensions - 12'' x 13'' (30.5 cm x 33 cm) Processor System CPU - Intel^® Xeon processor E5-2600/4600 & v3 series Socket - Dual Socket LGA 2011 R3*
*Please use narrow type CPU Cooler Chipset - Intel^® C612 System Memory Capacity - 16 DIMM slots (support NVDIMM) Type - Quad Channel memory technology
- Supports 2133/1866/1600 LR/R/ECC and NVDIMM Voltage - 1.2V Expansion Slot PCIe 3.0 x 8 - 6 slots Storage SATA Controller - Intel^® C612 : 10 x SATA3 6 Gb/s Ethernet Interface - 10000/1000 /100 /10 Mbps by Intel^® X540 (10G Base-T) LAN Controller - 2 x RJ45 GLAN by IntelX540
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI Management BMC Controller - ASPEED AST2400 IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management GLAN Features - Watch Dog

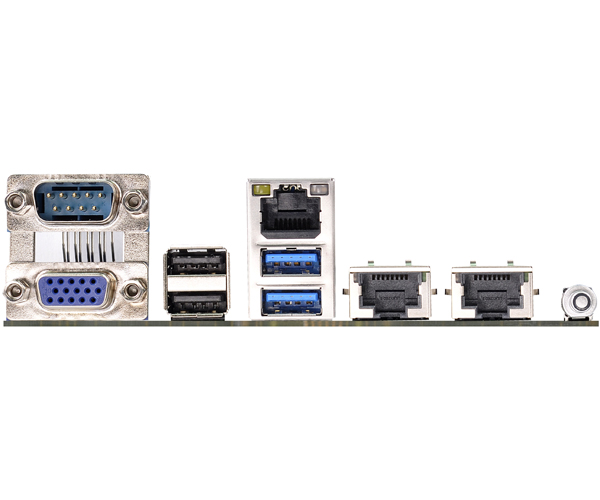

- NMI Graphics Controller - ASPEED AST2400 VRAM - DDR3 16MB Rear Panel I/O VGA Port - 1 x D-Sub USB 2.0 Port - 2 USB 3.0 Port - 2 Lan Port - 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port - 1 (COM1) Internal Connector Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header - 1 IPMB Header - 1 Buzzer - 1 Fan Header - 2x CPU Fan, 6x system Fan (4-pin) ATX Power - 1 (24-pin) + 2 (8-pin) USB 3.0 Header - 1 ( support 2 USB 3.0) USB 2.0 Header - 1 ( support 2 USB 2.0) Type A USB 3.0 Port - 1 Mezzanine - 1 ( x8 Storage Mezzanine card-M2208 & M8076) System BIOS BIOS Type - 128Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: CPU1/2, VCCM_AB/CD/EF/GH, +1.50_ PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS Microsot Windows
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 (not supported for Marvell 9172) Environment Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
