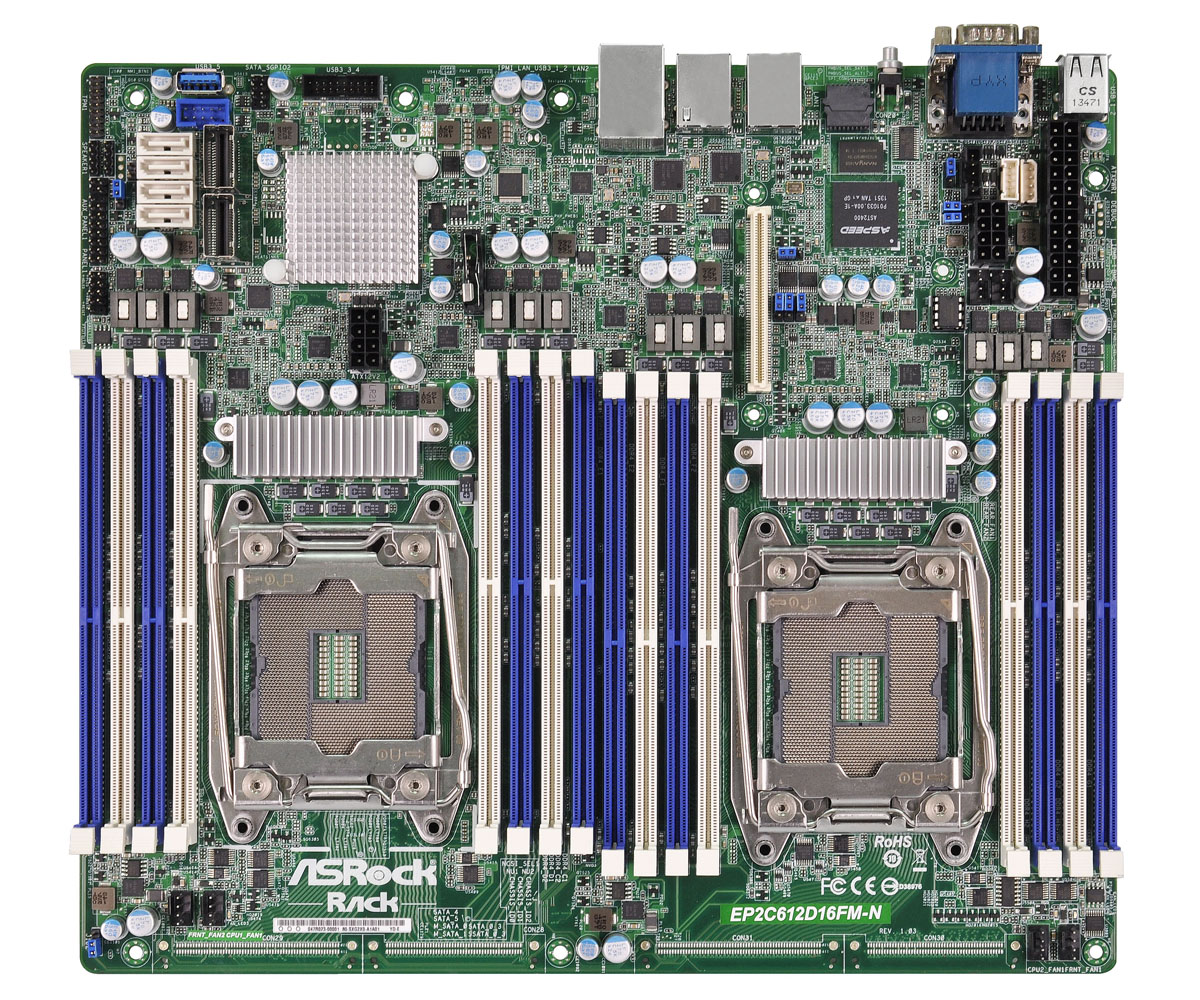

EP2C612D16FM-N

MB Physical Status Form Factor - SSI CEB Dimensions - 12'' x 10.5'' (30.5 cm x 26.7 cm) Processor System CPU - Intel^® Xeon processor E5-2600/4600 v3 series Socket - Dual Socket LGA 2011 R3*
*Please use narrow type CPU Cooler Chipset - Intel^® C612 System Memory Capacity - 16 DIMM slots Type - Quad Channel memory technology
- Supports 2133/1866/1600 ECC DIMM,RDIMM,NVDIMM and LRDIMM Voltage - 1.2V Expansion Slot Additional PCIe switch - NA Storage SATA Controller - Intel^® C612 : 10 x SATA3 6.0 Gb/s (8 from 2 mini SAS connector + 2x SATA3 connector) Additional Storage Controller - Marvell 9172: 2 x SATA3 6Gbps Ethernet Interface - 1000 /100 /10 Mbps LAN Controller - 2 x RJ45 by Intel^® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI Mezzanine - x8 Mezzanine slot support mezzanine card with 2 x10G Ethernet or 2 xGLAN (2 x 10G Base-T by Intel^® X540 or 2 x SFP+ by Intel^® 82599ES or 2 x GLAN by Intel^® i350 )
- Supports NCSI Management BMC Controller ASPEED AST2400 IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management GLAN Features - Watch Dog

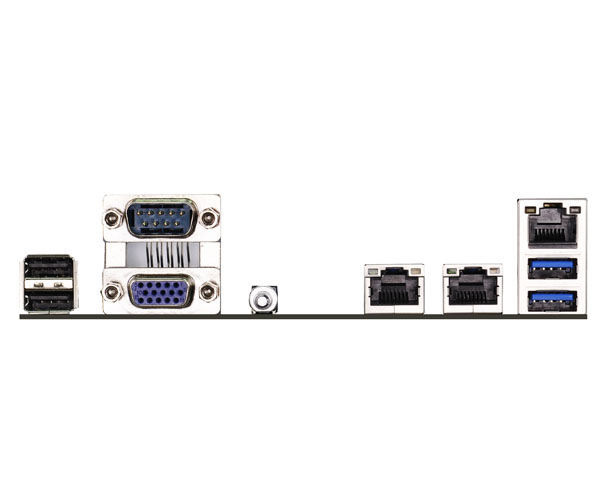

- NMI Graphics Controller - ASPEED AST2400 VRAM - DDR3 16MB Rear Panel I/O VGA Port - 1 x D-Sub USB 2.0 Port - 2 USB 3.0 Port - 2 Lan Port - 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port - 1 (COM1) UID Button/UID LED - 1 Internal Connector Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header - 1 IPMB Header - 1 Fan Header - 2x CPU Fan, 6x system Fan (4-pin) ATX Power - 1 (24-pin) + 2 (8-pin) USB 3.0 Header - 1 ( support 2 USB 3.0) USB 2.0 Header - 1 ( support 2 USB 2.0) Type A USB 3.0 Port - 1 Front Panel - 1 Mezzanine - 1 (from CPU 1) System BIOS BIOS Type - 128Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: CPU1/2, VCCM_AB/CD/EF/GH, +1.50 PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS Microsot Windows
- Windows 7 (32 / 64 bit)
- Windows 8 (32 / 64 bit)
- Windows 8.1 (32 / 64 bit)
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 (not supported for Marvell 9172) Environment Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
