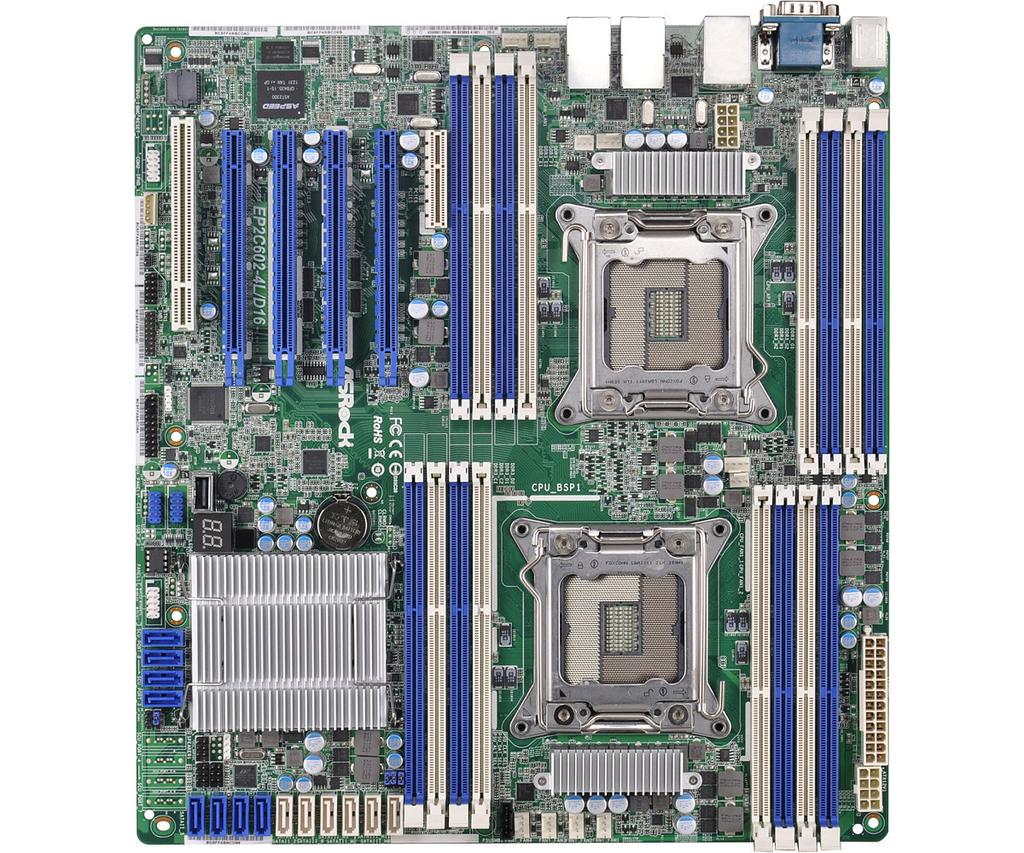

EP2C602-4L/D16
- Параметри: E-ATX, C602 chipset, 2x soc.2011, DDR3-16 DIMMs, 8xSATA 3G, 6xSATA 6G, 4xGLAN, IPMI
- Други: supports Intel Xeon E5-1600/2600/4600 & v2 series; Supports Quad Channel DDR3 1866 memory, 16 DIMM slots, Max. 512GB; 4 PCIe 3.0 x16, 1 PCIe 3.0 x4, 1 PCI; ASPEED AST2300 graphics, 1 VGA : D-Sub; 8 SATA2 (3.0 Gb/s) by Intel C602, Supports RAID 0, 1, 5, 10
- Гаранция: 36m
- Наличност: с поръчка
- Цена с включен ДДС: 762.81 BGN
Технически данни
| MB Physical Status | |
| Form Factor | - SSI EEB |
| Dimensions | - 12'' x 13'' (30.5 cm x 33 cm) |
| Processor System | |
| CPU | - Intel® Xeon processor E5-1600*/2600/4600 & v2 series - Supports Hyper-Threading Technology *E5-1600 supports single socket.
**i7 supports single socket |
| Socket | - Dual Socket R (LGA2011) |
| Power Design | - 6 +1 Power Phase Design |
| Chipset | - Intel® C602 |
| System Memory | |
| Capacity | - 16x 240-pin DDR3 DIMM slots - Support up to 512GB DDR3 R/LR DIMM ; 128GB ECC/non-ECC unbuffered UDIMM |
| Type | - Quad Channel DDR3 memory technology - Supports DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM |
| Voltage | - 1.5V, 1.35V |
| Expansion Slot | |
| PCIe 3.0 x 16 | 4 slots - 2 x PCIE2/PCIE5 : x16 mode - 1 x PCIE3: x0/x8 mode - 1 x PCIE4: x16/x8 mode |
| PCIe 3.0 x 4 | - 1 slot |
| PCI | - 1 slot |
| Storage | |
| SATA Controller | - Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions |
| Additional Storage Controller | - Marvell SE9230: 4 x SATA3 6.0 Gb/s, support RAID 0, 1, 10, NCQ, AHCI and "Hot Plug" functions |
| Ethernet | |
| Interface | - Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller | - 4 x Intel® 82574L - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Quad LAN with Teaming function - Supports PXE |
| Management | |
| BMC Controller | - ASPEED AST2300 |
| IPMI Dedicated LAN | - 1 x Realtek RTL8211E for dedicated management LAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2300 |
| VRAM | - DDR3 16MB |
| Output | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |

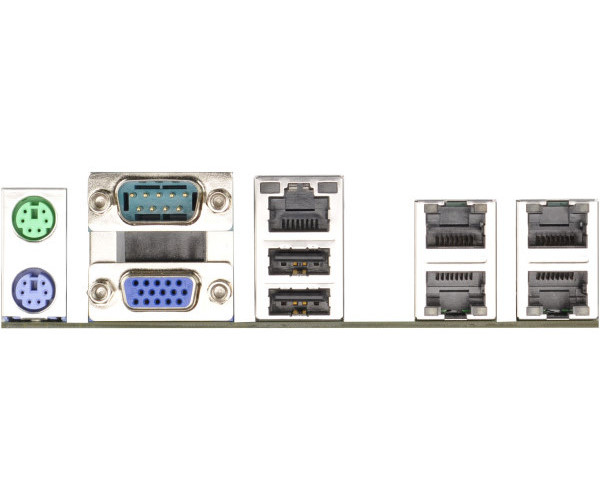

| Rear Panel I/O | |
| PS/2 KB/Mouse | - 2 |
| VGA Port | - 1 x D-Sub |
| USB 2.0 Port | - 2 |
| Lan Port | - 4 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 (COM1) |
| Internal Connector | |
| COM Port Header | - 1 (COM2) |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | - 1 |
| Thermal Sensor Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin) *CPU fan headers have 3-pin and 4-pin ones. Two types couldn't be used at the same time.
|
| ATX Power | - 1 (24-pin) + 2 (8-pin) |
| USB 2.0 Header | - 2 (each support 2 USB 2.0) |
| Type A USB 2.0 Port | - 1 |
| Front Panel | - 1 |
| Speaker | - 1 |
| Dr. Debug with LED | - 1 |
| System BIOS | |
| BIOS Type | - 64Mb AMI UEFI Legal BIOS with GUI support |
| BIOS Features | - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: CPU1/2, DRAM1/2, VCCM, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft Windows - Server 2008 R2 (x64) - Server 2012 (x64) - Server 2012 R2 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - UBuntu 12.04/12.10 (x64) Virtual - VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) |
| Environment | |
| Temperature | - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
