EP2C602

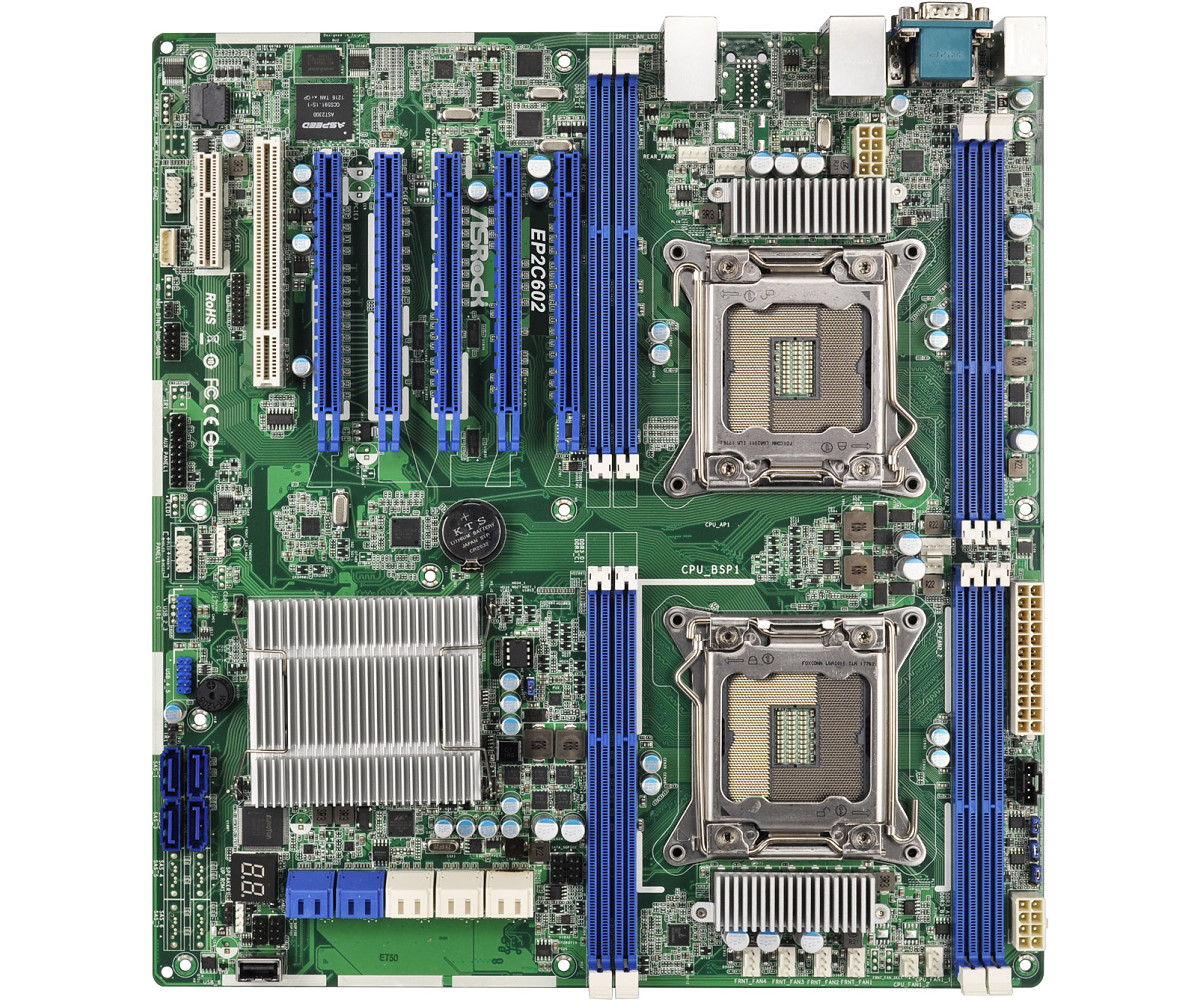

  • EP2C602 image
  • EP2C602 image
EP2C602 image click to zoom

  • Параметри: E-ATX, C602 chipset, 2x soc.2011, DDR3-8 DIMMs, 8xSATA 3G, 6xSATA 6G, 2xGLAN, IPMI
  • Други:  supports Intel Xeon E5-1600/2600/4600 & v2 series; Supports Quad Channel DDR3 1866 memory, 8 DIMM slots, Max. 256GB; 5 PCIe 3.0 x16, 1 PCIe 3.0 x4, 1 PCI; ASPEED AST2300 graphics, 1 VGA : D-Sub; 2 SATA3 (6.0 Gb/s), 8 SATA2 (3.0 Gb/s) by Intel C602, Suppor
  • Гаранция: 36m
  • Наличност:  с поръчка
  • Цена с включен ДДС: 703.45 BGN

Технически данни

MB Physical Status Form Factor - SSI EEB Dimensions - 12'' x 13'' (30.5 cm x 33 cm) Processor System CPU - Intel® Xeon processor E5-1600*/2600/4600 & v2 series
- Supports Hyper-Threading Technology

*E5-1600 supports single socket.
Socket - Dual Socket R (LGA2011)*
*Please use square type CPU Cooler Power Design - 6 +1 Power Phase Design Chipset - Intel® C602 System Memory Capacity - 8x 240-pin DDR3 DIMM slots
- Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM Type - Quad Channel DDR3 memory technology
- Supports DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM Voltage - 1.5V, 1.35V Expansion Slot PCIe 3.0 x 16 5 slots
- 3 x PCIE3/PCIE6/PCIE7 : x16 mode
- 1 x PCIE4: x8/x0 mode
- 1 x PCIE5: x16/x8 mode PCIe 3.0 x 4 - 1 slot PCI - 1 slot Storage SATA Controller - Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions Additional Storage Controller - Marvell SE9230: 4 x SATA3 6.0 Gb/s, support RAID 0, 1, 10, NCQ, AHCI and "Hot Plug" functions Ethernet Interface - Gigabit LAN 10/100/1000 Mb/s LAN Controller - 2 x Intel® 82574L
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Management BMC Controller - ASPEED AST2300 IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN Features - Watch Dog

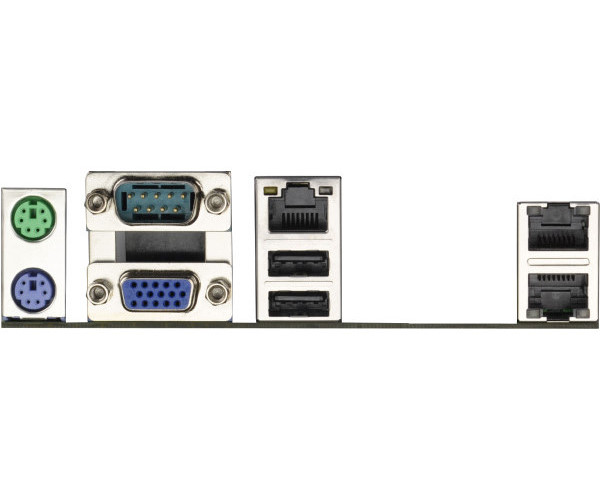

- NMI Graphics Controller - ASPEED AST2300 VRAM - DDR3 16MB Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse - 2 VGA Port - 1 x D-Sub USB 2.0 Port - 2 Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port - 1 (COM1) Internal Connector COM Port Header - 1 (COM2) Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header - 1 Thermal Sensor Header - 1 IPMB Header - 1 Buzzer - 1 Fan Header - 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin)

*CPU fan headers have 3-pin and 4-pin ones. Two types couldn't be used at the same time.
ATX Power - 1 (24-pin) + 2 (8-pin) USB 2.0 Header - 2 (each support 2 USB 2.0) Type A USB 2.0 Port - 1 Front Panel - 1 Speaker - 1 Dr. Debug with LED - 1 System BIOS BIOS Type - 64Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS Microsoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
- Server 2012 R2 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) Environment Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
