E3C224D4HM-8R

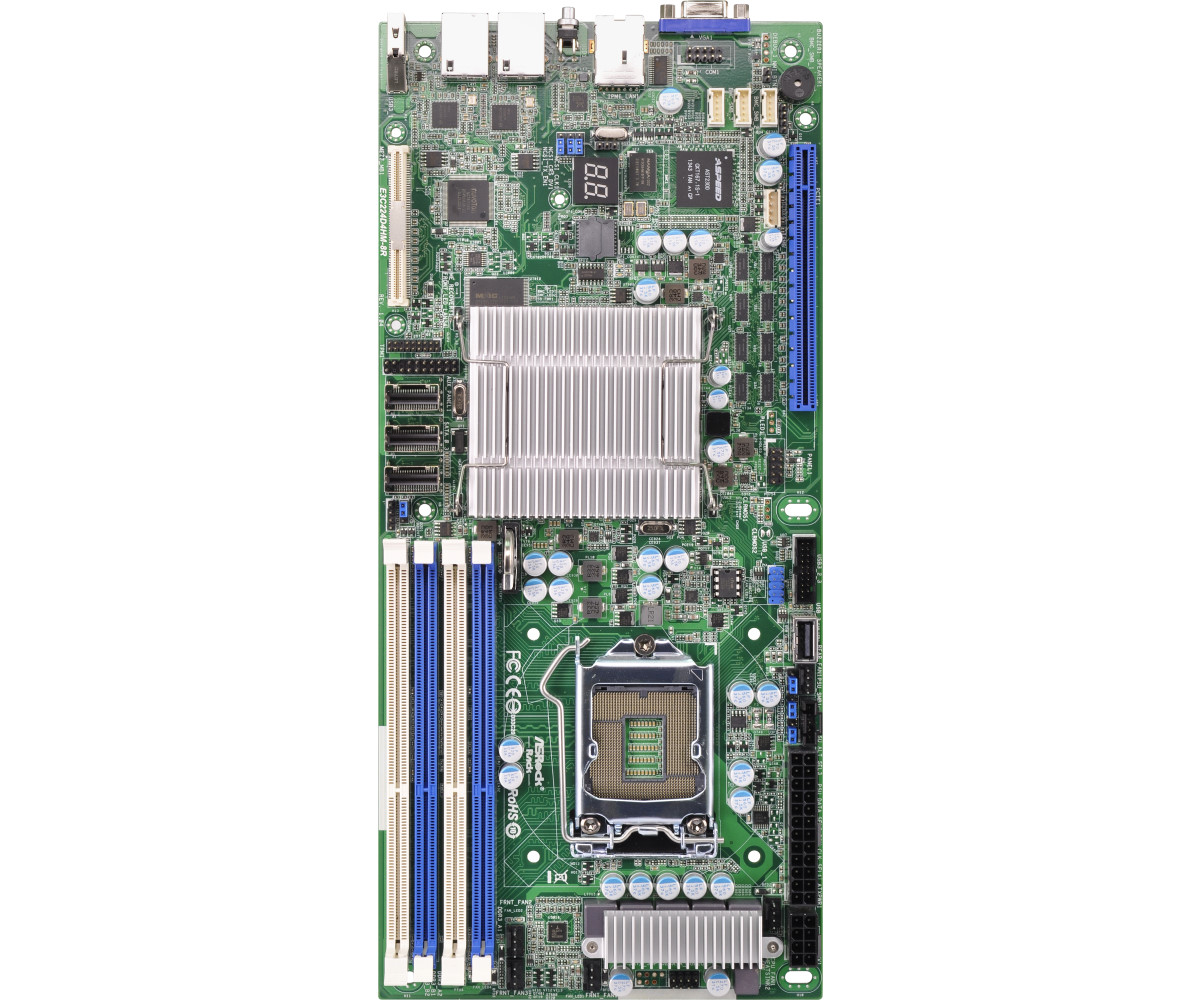

E3C224D4HM-8R image click to zoom

  • ПараметриHalf E-ATX , C224 chipset, 1x soc.1150, DDR3-4 DIMMs, N/AxSATA 3G, 4xSATA 6G, 8*6G SAS, 2xGLAN, 2*10G (Mezz) 10GLAN optional, IPMI
  • Други:  Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 ECC, max. 32GB; 1 x PCIe 3.0 x16; 4 x SATA3 from mini SAS connector by Intel C224 support RAID 0,1,5,10; 8 x SAS2 from 2xm
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 804.75 BGN

Технически данни

MB Physical Status Form Factor - Half Width Dimensions - 13'' x 5.96'' (33cm x 15.1 cm) Processor System CPU - Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology Socket - Single Socket H3 (LGA1150) Chipset - Intel® C224 System Memory Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC DIMM Type - Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC DIMM Voltage - 1.5V, 1.35V Expansion Slot PCIe 3.0 x 16 - 1 slot Storage SATA Controller - Intel® C224 : 4 x SATA3 6.0 Gb/s (from mini SAS connector). Support RAID 0, 1, 5, 10 and Intel® Rapid Storage SAS Controller - LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector) Ethernet Interface - Gigabit LAN 10/100/1000 Mb/s LAN Controller - 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Management BMC Controller - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN Features - Watch Dog

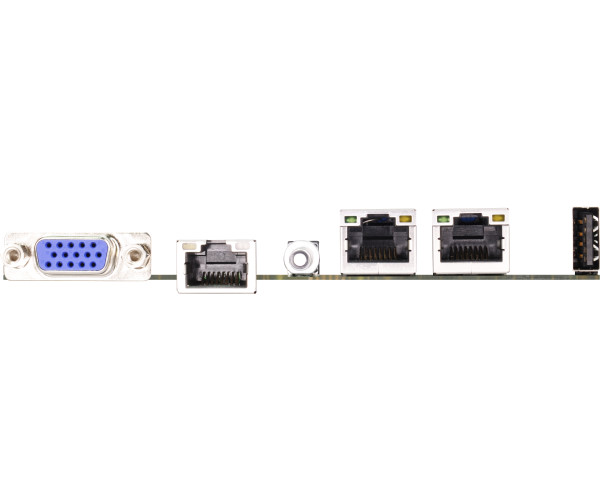

- NMI Graphics Controller - ASPEED AST2300 VRAM - DDR3 16MB Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O VGA Port - D-sub x 1 USB 3.0 Port - 1 Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) UID Button/UID LED - 1 x Button + 1 x LED Internal Connector COM Port Header - 1 (COM1) Front Lan LED Connector - 1 Auxiliary Panel Header - 1 (include chassis intrusion, location button & LED, front LAN LED) IPMB Header - 1 Buzzer - 1 Fan Header - 5 x 4-pin ATX Power - 1 (24-pin)+1 (8-pin) USB 3.0 Header - 1 (each support 2 USB 3.0) USB 2.0 Header - 1 (each support 2 USB 2.0) Type A USB 2.0 Port - 1 NMI Button - 1 Speaker - 1 Dr. Debug with LED - 1 System BIOS BIOS Type - 64Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS Microsot Windows
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 (not supported for Marvell 9172) Environment Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
