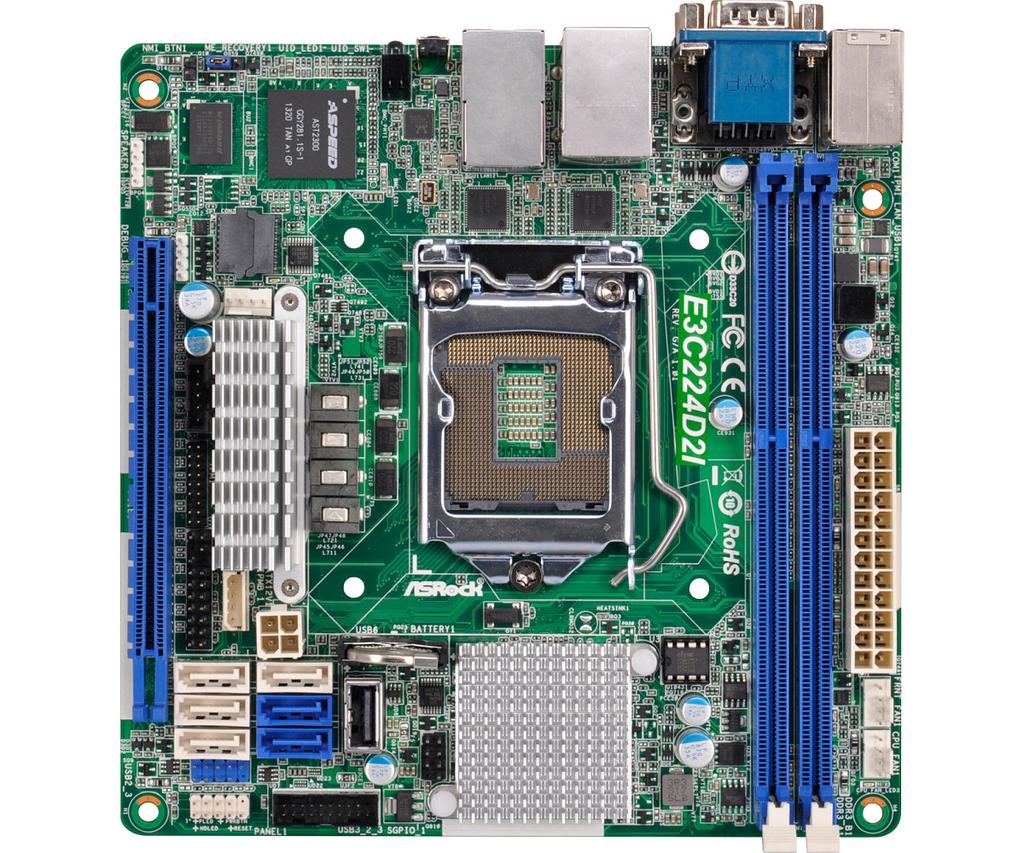

E3C224D2I
- Параметри: Mini-ITX, C224 chipset, 1x soc.1150, DDR3-2 DIMMs, 2xSATA 3G, 4xSATA 6G, 2xGLAN, IPMI
- Други: Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150); 2 x DIMM DDR3 1600/1333, Max. 16GB; 1 x PCIe 3.0 x16; 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10; 2 x Intel i210, support Dual GLAN wi
- Гаранция: 36m
- Наличност: с поръчка
- Цена с включен ДДС: 474.26 BGN
Технически данни
| MB Physical Status | |
| Form Factor | - Mini ITX |
| Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Processor System | |
| CPU | - Supports New 4th and 4th Generation Intel® Xeon E3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150) - Supports Hyper-Threading Technology * Due to Graphics control by AST2300, E3-1200 series integrated graphics can't be used. |
| Socket | - Single Socket H3 (LGA1150) |
| Chipset | - Intel® C224 |
| System Memory | |
| Capacity | - 2 x 240-pin DDR3 DIMM slots - Support up to 16GB DDR3 ECC DIMM |
| Type | - Dual Channel DDR3 memory technology - Supports DDR3 1600/1333 ECC DIMM |
| Voltage | - 1.5V, 1.35V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - 1 slot (x16 mode) |
| Storage | |
| SATA Controller | - Intel® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage |
| Ethernet | |
| Interface | - Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller | - 2 x Intel® i210 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE |
| Management | |
| BMC Controller | - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
| IPMI Dedicated LAN | - 1 x Realtek RTL8211E for dedicated management LAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2300 |
| VRAM | - DDR3 16MB |
| Output | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |

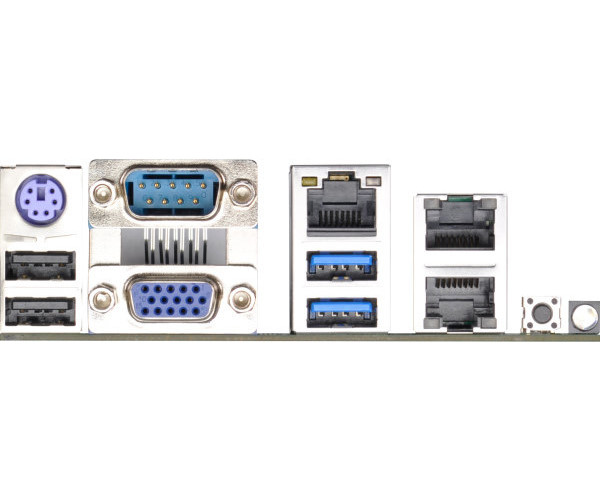

| Rear Panel I/O | |
| PS/2 KB/Mouse | - 1 |
| VGA Port | - D-sub x 1 |
| USB 2.0 Port | - 2 |
| USB 3.0 Port | - 2 |
| Lan Port | - 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 (COM1) |
| UID Button/UID LED | - 1 |
| Internal Connector | |
| Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED) |
| IPMB Header | - 1 |
| Fan Header | - 3 x 4-pin |
| ATX Power | - 1 (24-pin) + 1 (4-pin) |
| USB 2.0 Header | - 1 (each support 2 USB 2.0) |
| Type A USB 2.0 Port | - 1 |
| USB 3.0 Header | - 1 (each support 2 USB 3.0) |
| System BIOS | |
| BIOS Type | - 64Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft Windows - Server 2008 R2 (x64) - Server 2012 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - UBuntu 12.04/12.10 (x64) Virtual - VMWare ESXi 5.1 |
| Environment | |
| Temperature | - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
