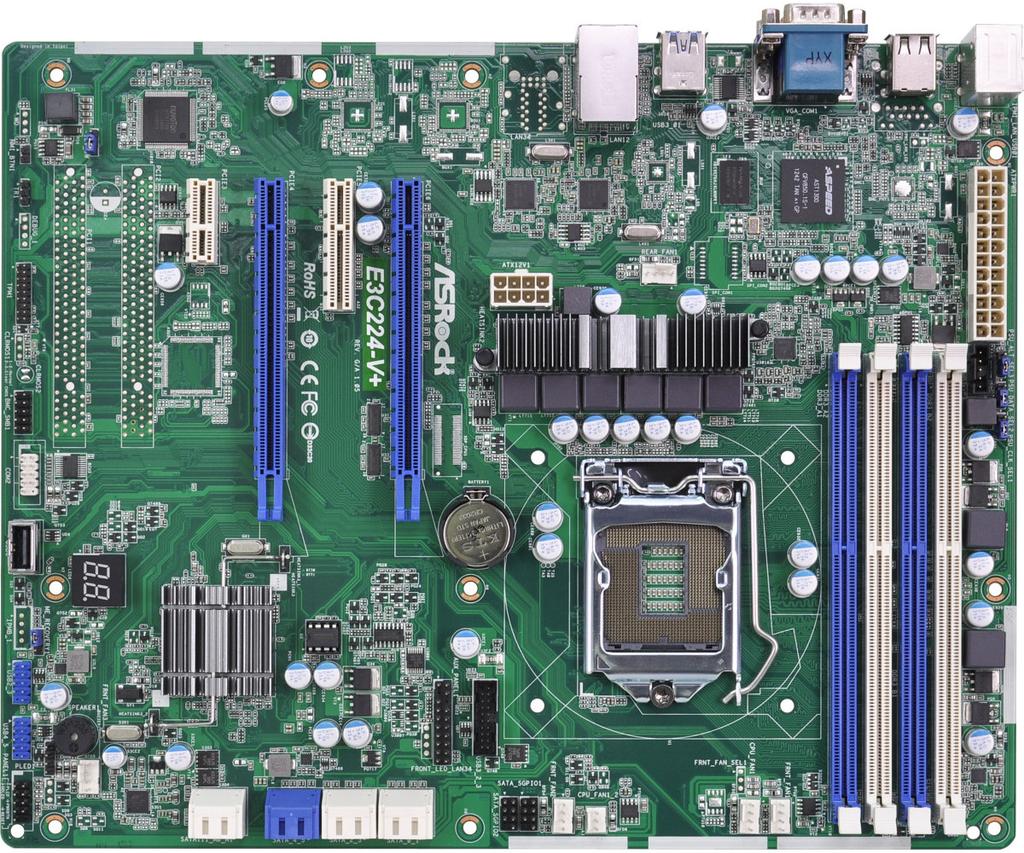

E3C224-V+

E3C224-V+ image click to zoom

  • ПараметриATX, C224 chipset, 1x soc.1150, DDR3-4 DIMMs, 2xSATA 3G, 6xSATA 6G, 2xGLAN, no IPMI
  • Други:  Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 ECC, max. 32GB; 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1; 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 369.39 BGN

Технически данни

MB Physical Status
Form Factor ATX
Dimensions 12'' x 9.6'' (30.5 cm x 24.4 cm)
Processor System
CPU Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
Supports Hyper-Threading Technology
Socket Single Socket H3 (LGA1150)
Power Design 6 Power Phase Design
Chipset Intel® C224
System Memory
Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC UDIMM
Type - Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC DIMM
Voltage - 1.5V, 1.35V
Expansion Slot
PCIe 3.0 x 16 - 2 slots (PCIE6 : x8 / PCIE4 : x8/x4)
PCIe 2.0 x 4 - 1 slot (PCIE5: x0/x4 mode)
PCIe 2.0 x 1 - 1 slot
Storage
SATA Controller - Intel® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage
Additional Storage Controller - Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1, NCQ, AHCI and "Hot Plug"

*Marvell SE9172 RAID is supported with Windows OS only.
Ethernet
Interface - Gigabit LAN 10/100/1000 Mb/s
LAN Controller - 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Graphics
Controller - ASPEED AST1300
VRAM - DDR3 16MB
Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

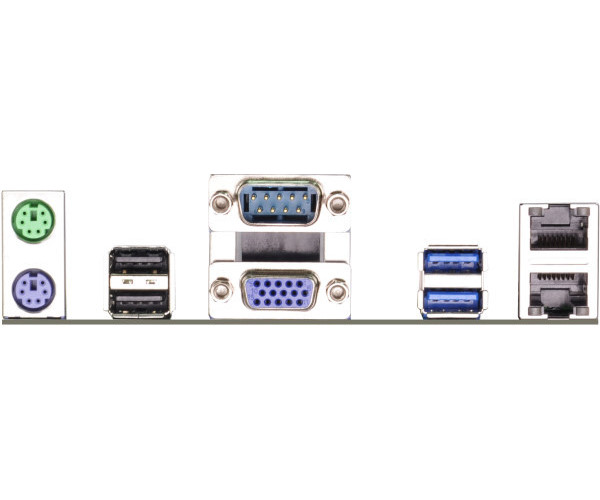

Rear Panel I/O
PS/2 KB/Mouse - 2
VGA Port - D-sub x 1
USB 2.0 Port - 2
USB 3.0 Port - 2
Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 (COM1)
Internal Connector
COM Port Header - 1 (COM2)
Front Lan LED Connector - 1
Auxiliary Panel Header - 1 (include chassis intrusion, location button & LED, front LAN LED)
TPM Header - 1
Thermal Sensor Header - 1
IPMB Header - 1
Buzzer - 1
Fan Header - 6 (5 x 4-pin, 1 x 3-pin)
ATX Power - 1 (24-pin)+1 (8-pin)
USB 2.0 Header - 2 (each support 2 USB 2.0)
Type A USB 2.0 Port - 1
USB 3.0 Header - 1 (each support 2 USB 3.0)
System BIOS
BIOS Type - 64Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS Microsoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- UBuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare)
Environment
Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
