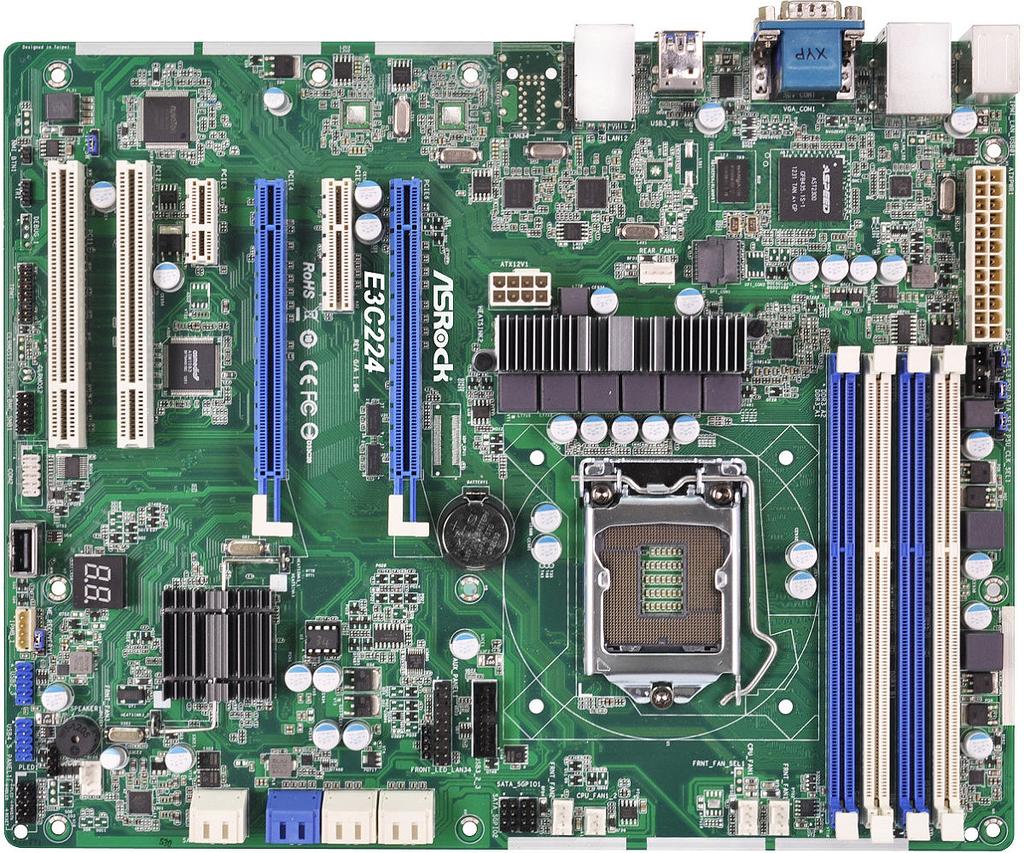

E3C224
- Параметри: ATX, C224 chipset, 1x soc.1150, DDR3-4 DIMMs, 2xSATA 3G, 6xSATA 6G, 2xGLAN, IPMI
- Други: Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 ECC, max. 32GB; 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1, 2 x PCI; 4 x SATA3, 2 SATA2 by Intel C224 support RAID
- Гаранция: 36m
- Наличност: с поръчка
- Цена с включен ДДС: 417.53 BGN
Технически данни
| MB Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12'' x 9.6'' (30.5 cm x 24.4 cm) |
| Processor System | |
| CPU | - Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150) - Supports Hyper-Threading Technology |
| Socket | - Single Socket H3 (LGA1150) |
| Power Design | - 6 Power Phase Design |
| Chipset | - Intel® C224 |
| System Memory | |
| Capacity | - 4 x 240-pin DDR3 DIMM slots - Support up to 32GB DDR3 ECC UDIMM |
| Type | - Dual Channel DDR3 memory technology - Supports DDR3 1600/1333 ECC DIMM |
| Voltage | - 1.5V, 1.35V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - 2 slots (PCIE6 : x8 / PCIE4 : x8/x4) |
| PCIe 2.0 x 4 | - 1 slot (PCIE5: x0/x4 mode) |
| PCIe 2.0 x 1 | - 1 slot |
| PCI | - 2 slots |
| Storage | |
| SATA Controller | - Intel® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage |
| Additional Storage Controller | - Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1, NCQ, AHCI and "Hot Plug" *Marvell SE9172 RAID is supported with Windows OS only.
|
| Ethernet | |
| Interface | - Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller | - 2 x Intel® i210 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE |
| Management | |
| BMC Controller | - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
| IPMI Dedicated LAN | - 1 x Realtek RTL8211E for dedicated management LAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2300 |
| VRAM | - DDR3 16MB |
| Output | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |

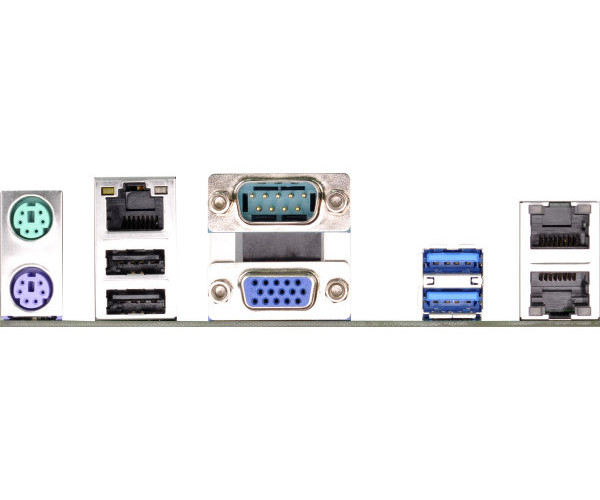

| Rear Panel I/O | |
| PS/2 KB/Mouse | - 2 |
| VGA Port | - D-sub x 1 |
| USB 2.0 Port | - 2 |
| USB 3.0 Port | - 2 |
| Lan Port | - 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 (COM1) |
| Internal Connector | |
| COM Port Header | - 1 (COM2) |
| Front Lan LED Connector | - 1 |
| Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | - 1 |
| Thermal Sensor Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 6 (5 x 4-pin, 1 x 3-pin) |
| ATX Power | - 1 (24-pin)+1 (8-pin) |
| USB 2.0 Header | - 2 (each support 2 USB 2.0) |
| Type A USB 2.0 Port | - 1 |
| USB 3.0 Header | - 1 (each support 2 USB 3.0) |
| System BIOS | |
| BIOS Type | - 64Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft Windows - Server 2008 R2 (x64) - Server 2012 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - UBuntu 12.04/12.10 (x64) Virtual - VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) |
| Environment | |
| Temperature | - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
