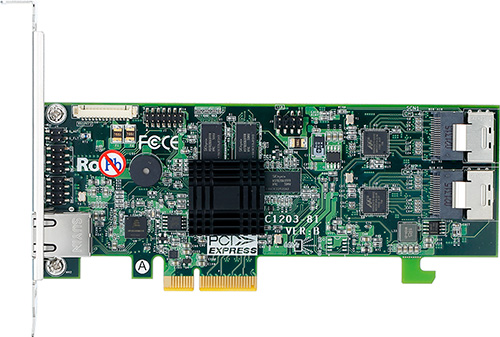

ARC-1203-8i
- Параметри: ARC-1203-8i 8port internal SATA 6G RAID /2xSFF-8087/, ARM 1066MHz processor, 512 MB ECC RAM, PCIe 2.0 x4, RAID 0, 1, 1E, 10, 3, 5, 6, 30, 50, 60, Single Disk or JBOD, Low profile, NO EXPANSION
- Други: include 2x SFF-8087 to 4x SATA cables, Drivers CD, book, retail box
- Гаранция: 36m
- Наличност: с поръчка
- Цена с включен ДДС: 747.60 BGN
Технически данни
|
PCIe x4 6Gb/s SATA RAID Controller
|
||
| Model Name |
ARC-1203-4I
|
ARC-1203-8I
|
| I/O Processor |
ARM_based 1066MHz storage I/O processor
|
|
| Host Bus Type |
PCIe 2.0 x 4 Lanes
|
|
| RAID Level Support |
0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk, and JBOD
|
|
| On-Board Cache |
512MB on-board DDR3-1066 SDRAM with ECC protection
|
|
| Driver Connector |
1*SFF-8087
|
2*SFF-8087
|
| Driver Support |
4*SATA lll
|
8*SATA lll
|
| Management Port |
In-Band: PCIe / Out-of-Band: LCD, and LAN Port
|
|
| Enclosure Ready |
Individual Faulty Header, SGPIO, and Serial bus
|
|
| Form Factor (H x L) |
Low Profile: 64.4 x 168 mm
|
|
| Architecture | ||
|
|
ARM_based 1066MHz storage I/O processor | |
 |
512MB on-board DDR3-1066 SDRAM with ECC | |
| protection | ||
|
PCIe 2.0 x4 lanes host interface | |
|
Support up to 4/8 x 6Gb/s SATA HDDs/SSD | |
|
Multi-adapter support for large storage | |
| requirements | ||
|
BIOS boot support for greater fault tolerance | |
|
Boot support for the uEFI host BIOS | |
|
BIOS PnP (plug and play) and BBS (BIOS boot | |
| specification) support | ||
|
NVRAM for RAID event & transaction log | |
|
Redundant flash image for adapter availability | |
|
Battery Backup Module (BBM) ready (optional) | |
|
RoHS Compliant | |
| RAID Features | ||
|
RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single | |
| Disk or JBOD | ||
|
Multi-level RAID 0 and RAID 10 (R00 and R100) | |
|
Support up to 1MB stripe size | |
|
Multiple RAID selection | |
|
Online array roaming | |
|
Online RAID level/stripe size migration | |
|
Online capacity expansion and RAID level migration | |
| simultaneously | ||
|
Online volume set growth | |
|
Instant availability and background initialization | |
|
Support global and dedicated hot spare | |
|
Automatic drive insertion/removal detection and | |
| rebuilding | ||
|
Greater than 2TB capacity per disk drive support | |
|
Greater than 2TB per volume set (64-bit LBA | |
| support) | ||
|
SED (self-encrypting drives) function support | |
|
Support intelligent power management to save | |
| energy and extend service life | ||
|
Support for native 4K and 512 byte sector SATA | |
| devices | ||
|
Multiple pairs SSD/HDD disk clone function | |
|
SSD automatic monitor clone (AMC) support | |
|
Support HDD firmware update | |
| Monitors/Indicators | ||
|
System status indication through global HDD | |
| activity/fault connector, individual fault connector, | ||
| LCD/serial bus connector an d alarm buzzer | ||
|
SMTP support email notification | |
|
SNMP support for remote manager | |
|
Enclosure management (Serial bus & SGPIO) ready | |
| RAID Management | ||
|
Field-upgradeable firmware in flash ROM | |
| In-Band Manager | ||
|
Web browser-based McRAID storage manager via ArcHTTP proxy server for all operating systems | |
|
Hot key "boot-up" McBIOS RAID manager via BIOS | |
|
Support Command Line Interface (CLI) | |
|
API library for customer to write manager utility | |
|
Single Admin Portal (ArcSAP) quick manager utility | |
| Out-of-Band Manager | ||
|
Firmware-embedded web browser-based McRAID | |
| storage manager, SMTP manager, SNMP agent and | ||
| Telnet function via Ethernet port | ||
|
Out-of-Band API sample and functional code for | |
| customer to quickly customize its AP | ||
|
Support push button and LCD display panel | |
| (optional) | ||
| Operating System | ||
|
Windows 10/8/Server2012/7/2008/Vista/Server 2003/XP | |
|
Linux | |
|
FreeBSD | |
|
VMware (Driver 6.x support CLI in-band management utility) | |
|
Solaris 10/11 x86/x86_64 | |
|
Mac OS X 10.5.x or Higher | |
