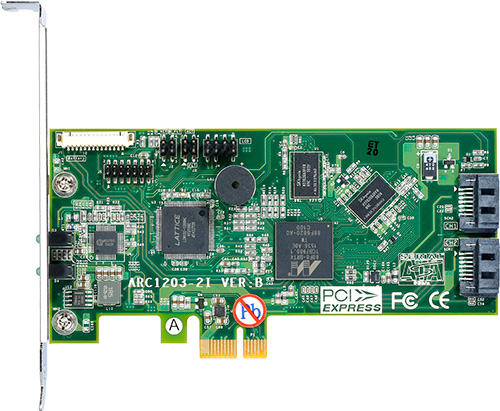

ARC-1203-2i
- Параметри: ARC-1203-2i 2port internal SATA 6G RAID /2xSATA III/, ARM 1066MHz processor, 512MB RAM, PCIe 2.0 x1, RAID 0, 1,Single Disk or JBOD, Low profile
- Други: Include Cables, Management software, Drvers CD, book, retails box,
- Гаранция: 36m
- Наличност: ограничено количество
- Цена с включен ДДС: 338.40 BGN
Технически данни
|
PCIe 2.0 x 1 SATA RAID Controller
|
|
| Model Name |
ARC-1203-2I
|
| I/O Processor |
ARM_based 1066MHz storage I/O processor
|
| Host Bus Type |
PCIe 2.0 x 1 Lanes
|
| RAID Level Support |
0, 1, Single Disk and JBOD
|
| On-Board Cache |
512MB on-board DDR3-1066 SDRAM
|
| Driver Connector |
2*SATA lll
|
| Driver Support |
up to 2*SATA lll drives
|
| Management Port |
In-Band: PCIe / Out-of-Band: LCD
|
| Form Factor (H x L) |
Low Profile: 64.4 x 134 mm
|
| Architecture | ||
|
|
1066MHz storage processor | |
 |
PCIe 2.0 x1 bus | |
|
512MB on-board DDR3-1066 SDRAM | |
|
Write-through or write-back cache support | |
|
Support up to 2 SATA lll drives | |
|
Multi-adapter support for large storage requirements | |
|
BIOS boot support for greater fault tolerance | |
|
Boot support for the uEFI host BIOS | |
|
BIOS PnP (plug and play) and BBS (BIOS boot | |
| specification) support | ||
|
NVRAM for RAID event & transaction log | |
|
Redundant flash image for adapter availability | |
|
Battery Backup Module (BBM) ready (optional) | |
|
RoHS Compliant | |
| RAID Features | ||
|
Support RAID level 0, 1, Single Disk and JBOD | |
|
Configurable stripe size up to 1024KB | |
|
Multiple RAID selection | |
|
Online array roaming | |
|
Online RAID level/stripe size migration | |
|
Online capacity expansion and RAID level migration | |
| simultaneously | ||
|
Instant availability and background initialization | |
|
Automatic drive insertion/removal detection and | |
| rebuilding | ||
|
Greater than 2TB capacity per disk drive support | |
|
Greater than 2TB per volume set (64-bit LBA | |
| support) | ||
|
SED (self-encrypting drives) function support | |
|
Support intelligent power management to save | |
| energy and extend service life | ||
|
Support for native 4K and 512 byte sector SATA | |
| devices | ||
|
Support HDD firmware update | |
| Monitors/Indicators | ||
|
System status indication through global HDD | |
| activity/fault connector, individual fault connector, | ||
| LCD/serial bus connector an d alarm buzzer | ||
|
SMTP support email notification | |
|
SNMP support for remote manager | |
| RAID Management | ||
|
Field-upgradeable firmware in flash ROM | |
| In-Band Manager | ||
|
Web browser-based McRAID storage manager via ArcHTTP proxy server for all operating systems | |
|
Hot key "boot-up" McBIOS RAID manager via BIOS | |
|
Support Command Line Interface (CLI) | |
|
API library for customer to write manager utility | |
|
Single Admin Portal (ArcSAP) quick manager utility | |
| Out-of-Band Manager | ||
|
Support push button and LCD display panel | |
| (optional) | ||
| Operating System | ||
|
Windows 10/8/Server2012/7/2008/Vista/Server 2003/XP | |
|
Linux | |
|
FreeBSD | |
|
Solaris 10/11 x86/x86_64 | |
|
Mac OS X 10.5.x or Higher | |
