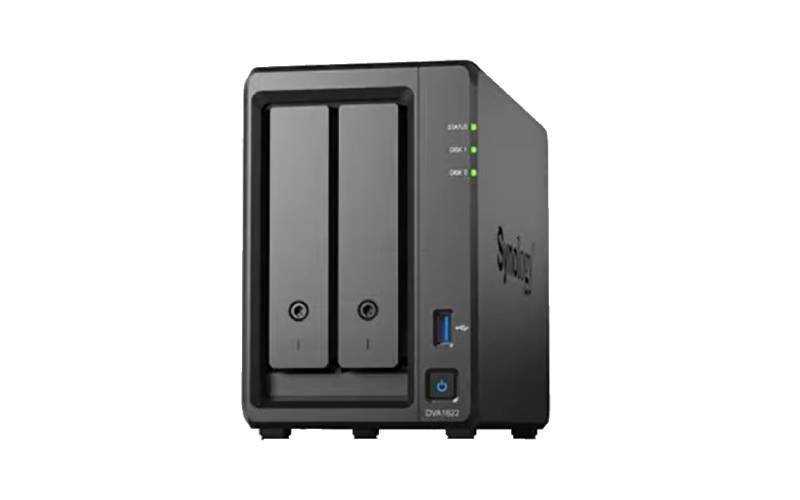

DVA1622

DVA1622 image click to zoom

  • ПараметриNetwork Video Recorder Deep Learning 2 HDD with 16 IP cameras support (inkl. 8 Free License), DVA1622
  • Други:  People and vehicle detection; People counting; Face recognition; Intrusion detection; HDMI output
  • Гаранция36 m
  • Наличностс поръчка
  • Цена с включен ДДС: 1298.40 BGN

Технически данни

Models

DVA1622

DVA3221

CPU CPU Model Intel Celeron J4125 Intel Atom C3538
CPU Architecture 64-bit 64-bit
CPU Frequency Quad Core 2.0 (base) / 2.7 (burst) GHz Quad Core 2.1 GHz
Hardware Encryption Engine (AES-NI)
GPU GPU Model Intel UHD Graphics 600 NVIDIA GeForce GTX 1650
Video Outputs Video Outputs HDMI X 1 -
Supported Video Resolution 1080p 60Hz -
Memory System Memory 6 GB DDR4 non-ECC 8 GB DDR4
Memory Module Pre-installed 6 GB (2 GB + 4 GB) 8 GB (4 GB x 2)
Total Memory Slots - 2
Maximum Memory Capacity - 32 GB (16 GB x 2)
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
  • For more information on memory upgrade limitations, visit here.
Storage Drive Bays 2 4
Maximum Drive Bays with Expansion Unit - 14 (DX517 x 2)
Compatible Drive Type* (See all supported drives) 3.5" SATA HDD
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports RJ-45 1GbE LAN Port 1 4 (with Link Aggregation / Failover support)
USB 3.0 Port 2 3
eSATA Port - 2
Appearance Size (Height x Width x Depth) 166 mm x 106 mm x 223 mm 166 mm x 250 mm x 237 mm
Weight 1.51 kg 4.92 kg
Others Wake on LAN / WAN
System Fan 92 mm x 92 mm x 1 pcs 120 mm x 120 mm x 1 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
Power Recovery
Noise Level* 18.4 dB(A) 28.3 dB(A)
Scheduled Power On / Off
Power Supply Unit / Adapter 60 W 250 W
AC Input Power Voltage 100 V to 240 V AC 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase
Power Consumption* 19.93 W (Access)
4.02 W (HDD Hibernation)
43.92 W (Access)
28.43 W (HDD Hibernation)
British Thermal Unit 67.96 BTU/hr (Access)
13.71 BTU/hr (HDD Hibernation)
149.86 BTU/hr (Access)
97.01 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this acrticle.
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • EAC
  • KC
Warranty 3 Years 3 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment RoHS Compliant RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • 3.5" SATA HDD: HAT5300
  • VisualStation: VS360HD
  • Surveillance Device License Pack
Notes - The original non-ECC memory modules must be removed before the optional ECC memory modules can be installed. For more information, visit here.
