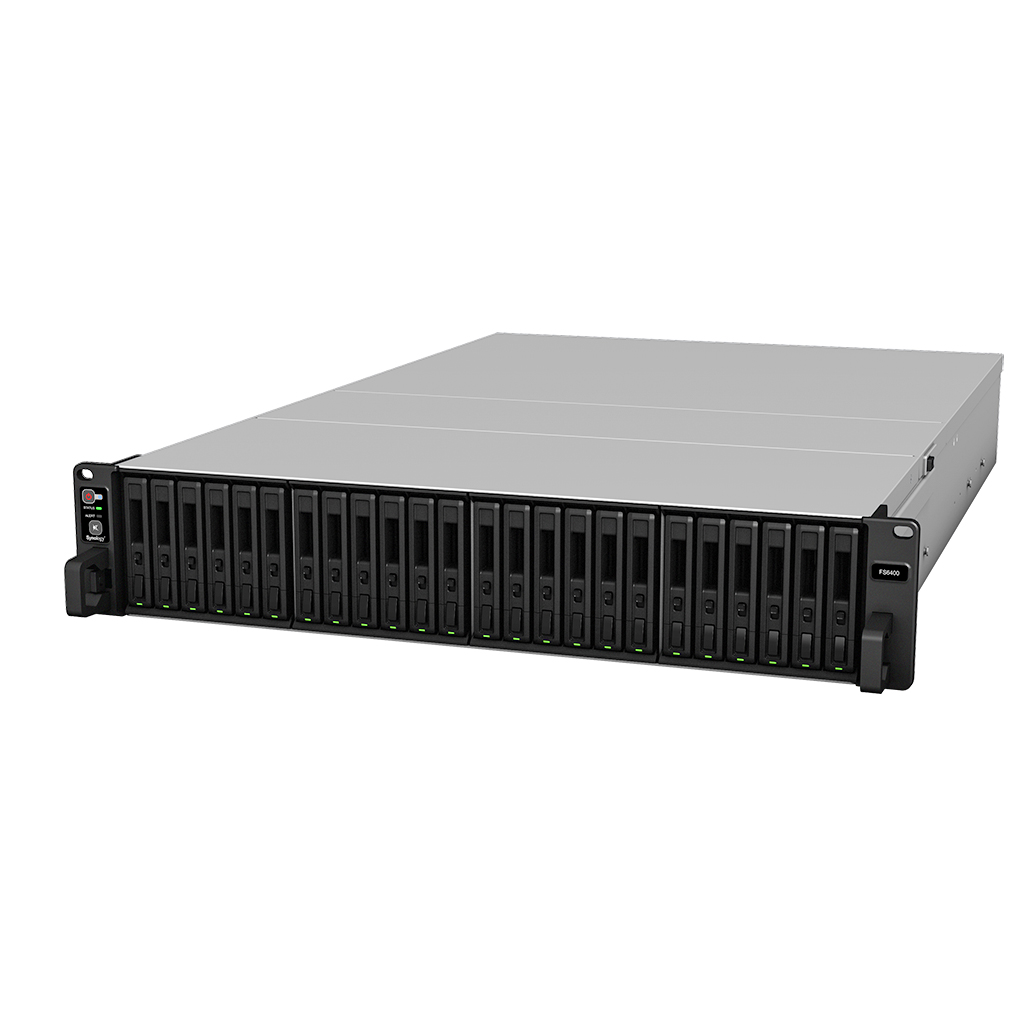

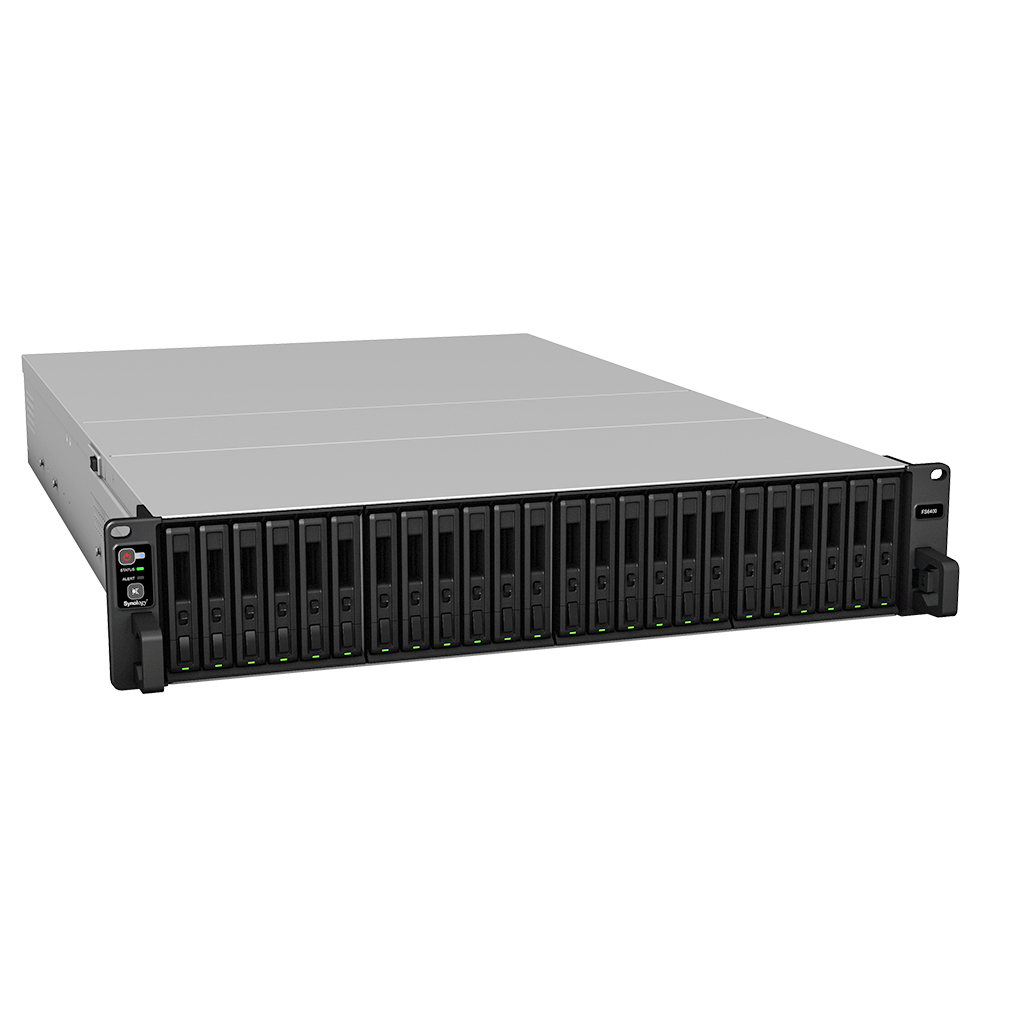

FS6400

  • FS6400 image
  • FS6400 image
  • FS6400 image
FS6400 image click to zoom

  • Параметри: 24-bay all-flash NAS server for Large Scale Business, FlashStation FS6400
  • Други:  2x Intel Xeon 4110 8-core 2.1 GHz, 32 GB DDR4 ECC RDIMM (up to 512 GB), support 24x 2,5" SATA/SAS SSD hotswap, 2x USB 3.0, 2x 1GbE, 2x 10GbE, 2x PCIe gen.3 slots, virtualization support: Vmware vSphere 6 with VAAI, Windows server 2012 R2, Citrix Ready, Op
  • Гаранция: 60m
  • Наличност:  с поръчка
  • Цена с включен ДДС: 27195.60 BGN

Технически данни

Hardware Specifications
CPU
CPU Model Intel Xeon Silver 4110 x 2
CPU Architecture 64-bit
CPU Frequency 8-Core 2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine (AES-NI) V
Memory*
System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (16 GB x 2)
Total Memory Slots 16
Memory Expandable up to 512 GB (32 GB x 16)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Drive Bays 24
Maximum Drive Bays with Expansion Unit 48 (RX1217sas) / 72 (RX2417sas)
Compatible Drive Type* (See all supported drives)
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 184.32 TB (7.68 TB drive x 24) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 552.96 TB (184.32 TB + 7.68 TB drive x 48) (Capacity may vary by RAID types)
Maximum Single Volume Size*
  • 200 TB (for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive V
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
  • Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 200TB.

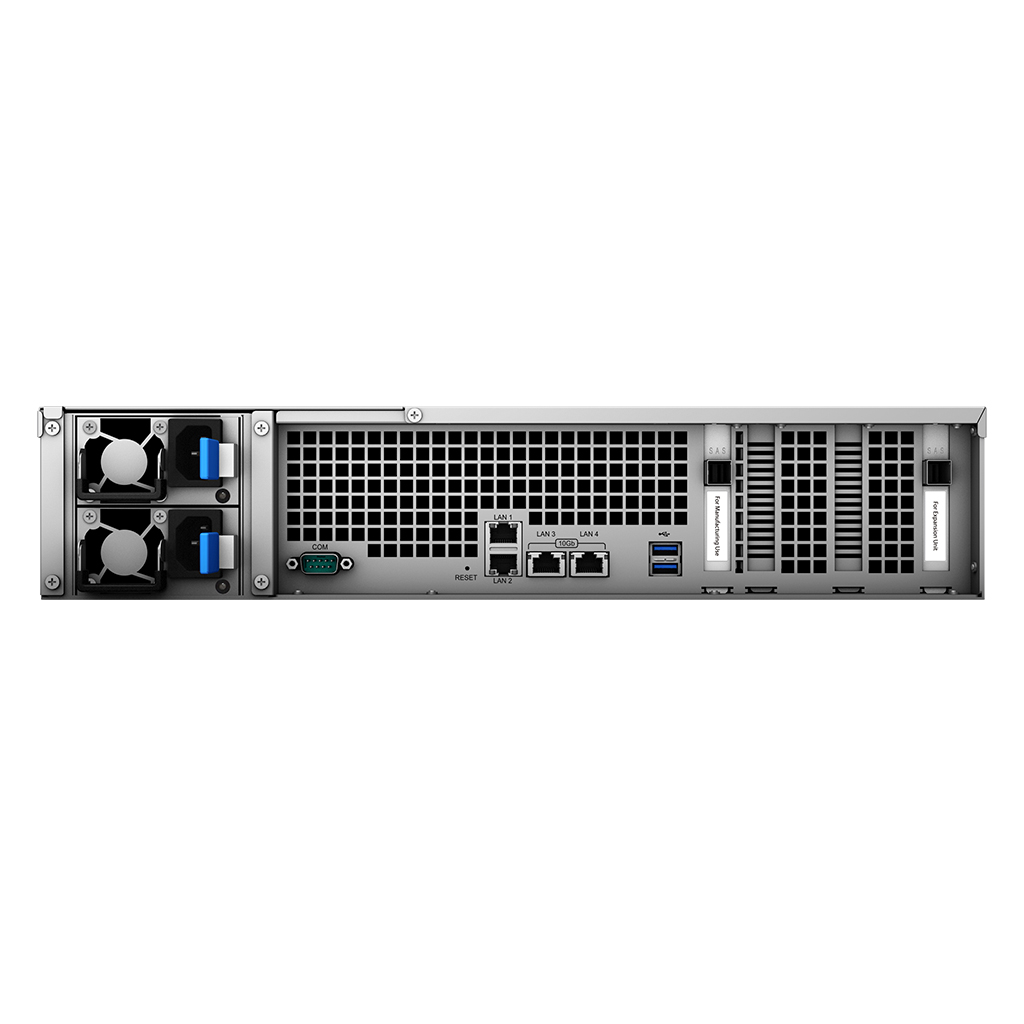

External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 1
PCIe
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Add-In-Card Support PCIe Network Interface Card (Learn more)
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 17.26 kg
Rack Installation Support 4-post 19" rack (Synology Rail Kit - RKS1317)
Notes The rail kit is sold separately
Others
System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan V
Power Recovery V
Noise Level* 53.7 dB(A)
Scheduled Power On/Off V
Wake on LAN/WAN V
Power Supply Unit / Adapter 800W
Redundant Power Supply V
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60Hz, Single Phase
Power Consumption* 288.49 W (Access)
145.8 W (HDD Hibernation)
British Thermal Unit 984.37 BTU/hr (Access)
497.49 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • VCCI
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 5 Years
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Power consumption is measured when fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 256
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX V
SSD Read/Write Cache (White Paper) V
SSD TRIM V
RAID Group V
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
File Services
File Protocol CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections 8,000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) 10,000
Windows Access Control List (ACL) Integration V
NFS Kerberos Authentication V
Account & Shared Folder
Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Synology High Availability V
Log Center V
Syslog Events per Second 3,000
Virtualization
VMware vSphere 6 with VAAI V
Windows Server 2016 V
Citrix Ready V
OpenStack V
Add-on Packages (Learn more about the complete add-on package list)
Antivirus by McAfee (Trial) V
Central Management System V
Synology Chat V
Maximum Users 6,000
Notes
  • The number of concurrent HTTP connections for Synology Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Document Viewer V
exFAT Access (Optional) V
Synology MailPlus / MailPlus Server V
Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 2,200
Maximum Server Performance 5,721,000 emails per day, approx. 174GB
Notes
  • The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Snapshot Replication V
Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station V
Maximum IP cam (Licenses required) 128 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 3840 FPS @ 720p (1280x720)
3456 FPS @ 1080p (1920x1080)
1664 FPS @ 3M (2048x1536)
970 FPS @ 5M (2591x1944)
690 FPS @ 4K (3840x2160)
Total FPS (H.265)* 3840 FPS @ 720p (1280x720)
3840 FPS @ 1080p (1920x1080)
3072 FPS @ 3M (2048x1536)
1792 FPS @ 5M (2591x1944)
1140 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 1260 FPS @ 720p (1280x720)
770 FPS @ 1080p (1920x1080)
560 FPS @ 3M (2048x1536)
400 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive V
Recommended Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Sync Clients 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Exceeding the limits above may result in longer response time in file operations.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office V
Maximum Users 3,400
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager V
Recommended Virtual Machine Instances 32 (Learn more)
Recommended Virtual DSM Number(Licenses required) 32 (including 1 Free License)
Notes
  • Virtual Machine Manager is not supported on hosts running Synology High Availability.
  • The specifications vary depending on system configuration and memory size.
VPN Server V
Maximum Connections 40
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • D4RD-2666-16G DDR4 ECC RDIMM*
  • D4RD-2666-32G DDR4 ECC RDIMM
  • Expansion Unit: RX2417sas X 2
  • Expansion Unit: RX1217sas X 2
  • Synology Ethernet Adapter E10G17-F2
  • Synology Ethernet Adapter E10G18-T1
  • Synology Ethernet Adapter E10G18-T2
  • Synology Rail Kit Sliding - RKS1317
  • VS360HD
  • VS960HD
Notes It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here.
