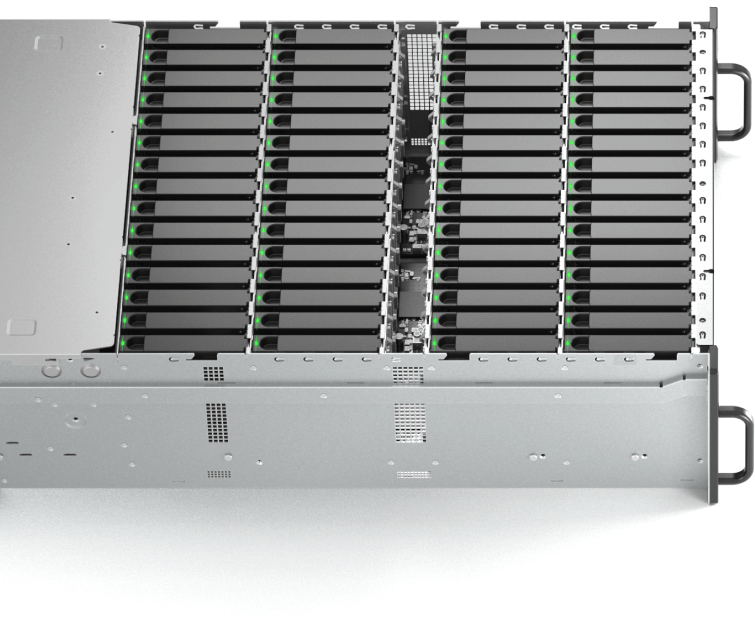

  • Параметри4U 60-bay 3.5" SAS HDD JBOD
  • Други:  60x 3.5" SAS HDD, hotswap HDD, 1200W PSU
  • Гаранция60m
  • Наличностс поръчка
  • Цена с включен ДДС: 14277.60 BGN

Технически данни

Applied Models
Supports creating volumes across different units HD6500
Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Drive Bays 60
Compatible Drive Type* (See all supported drives) 3.5" SAS HDD
Maximum Internal Raw Capacity 960 TB (16 TB drive x 60) (Capacity may vary by RAID types)
Hot Swappable Drive
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
Expansion Port 2
Size (Height x Width x Depth) 176 mm x 438 mm x 985 mm
Size (Height x Width x Depth) (with server ears) 176 mm x 482 mm x 1020 mm
Weight 33.9 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-03)
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 1200 W
AC Input Power Voltage 200V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 811.8 W (Access)
231 W (HDD Hibernation)
British Thermal Unit 2768.24 BTU/hr (Access)
787.71 BTU/hr (HDD Hibernation)
Redundant Power Supply (for RP model)
Notes Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
System Fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Noise Level* 61.7 dB(A)
Notes Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
  • UL
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • VCCI
  • RCM
  • KC
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment & Packaging
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Rail kit RKS-03 X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: Mini-SAS HD X 2
  • Quick Installation Guide X 1
Optional Accessories
3.5" SAS HDD: HAS5300
