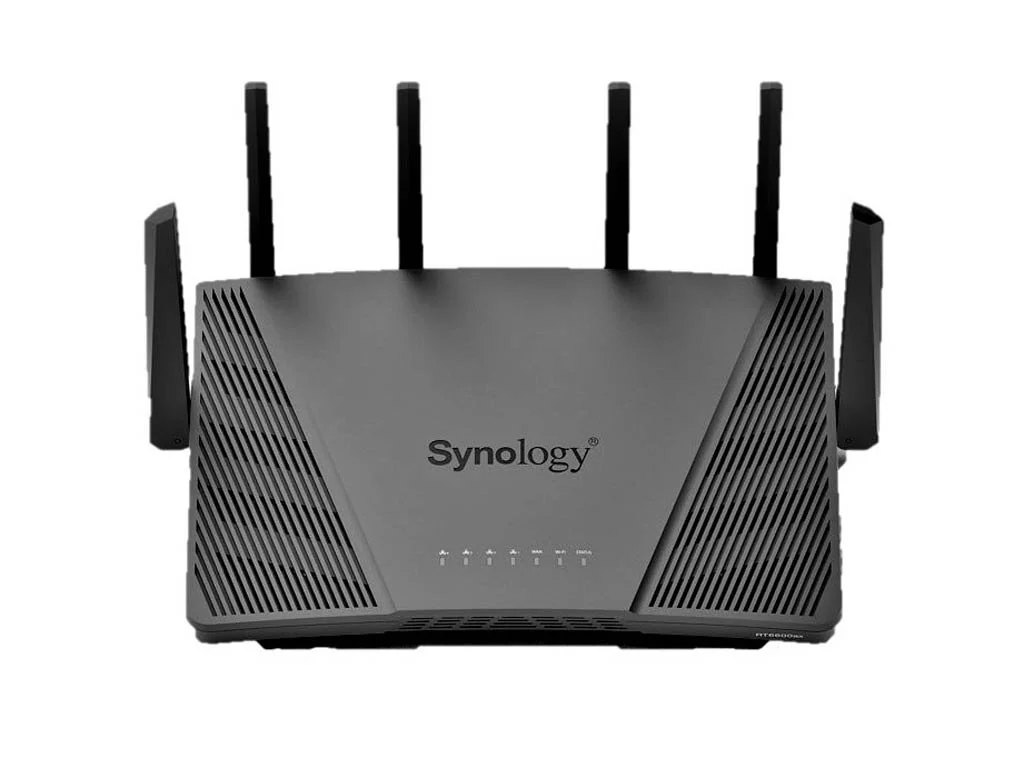

RT6600ax

CPU

Quad-core 1.8 GHz

Hardware L7 engine

Yes

Memory

DDR3 1 GB

Antenna type

2T2R + 4T4R omnidirectional high-gain dipole (2.4 GHz/5 GHz)

RJ-45 ports

• 1 x Gigabit WAN

• 1 x 2.5GbE configurable WAN/LAN

• 3 x Gigabit LAN

External ports

1 x USB 3.2 Gen 1 (Type-A)

Size (HxWxD)

175 mm x 320 mm x 200 mm (antennas in upright position)

AC adapter input voltage

100 V to 240 V AC

Power frequency

50 to 60 Hz, single phase

Operating environment

• 5°C to 40°C (40°F to 104°F)

• 8% to 80% RH

Storage environment

• -20°C to 60°C (-5°F to 140°F)

• 5% to 95% RH

Maximum operating altitude

5,000 m (16,400 ft)

Wireless standards

• IEEE 802.11 a/n/ac/ax simultaneous tri-band

• 802.11k/v/r roaming support

Max. data rate

• 2.4 GHz: Up to 600 Mbps

• 5 GHz-1: Up to 4800 Mbps

• 5 GHz-2: Up to 1200 Mbps

Wireless security

WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE), Wi-Fi Protected Setup (WPS) 2.0

Other wireless functions

Smart Connect for automatic band steering, independent Wi-Fi schedule ON/OFF, guest network

Operation modes

DHCP

Server/client mode, client list, MAC address reservation

Port forwarding

DMZ, UPnP, VPN pass-through (PPTP, IPSec, L2TP, SIP)

Parental control

Per-device configurable internet schedule, allow/block list, DNS-based web filter with built-in database, YouTube, Google, and Bing search integration, supports Google Safe Browsing

Traffic control

• Per-device custom speed, traffic monitoring, per-application limits, and advanced usage reporting

• Application Layer (Layer 7) monitoring and management

Network tools

Ping, Traceroute, WoL over Synology QuickConnect integration

Security

• Denial of service (DoS) protection and IP auto block mechanism

• SSL certificates with Let's Encrypt integration

• Synology Security Advisor

• Two-factor authentication

Network separation

Max. number of VLANs: 5

VPN clients

PPTP, OpenVPN™, L2TP over IPSec

IPv6 support

IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6

Backup solutions

Back up & restore SRM configuration, Time Machine support (with attached USB storage device)

Notifications

Email, SMS, push service (via DS router)

File service

SMB, AFP, FTP/FTPS, WebDAV

FTP server

Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols,

transfer logs

iOS/Android™ applications

DS router, VPN Plus, DS cloud, DS file, DS get (Android™)

Anywhere access

Synology QuickConnect, Dynamic DNS (DDNS)

Printer support

• Max. number of printers: 1

• Printing protocols: LPR, CIFS, IPP

Advanced functions

Smart WAN - Dual WAN load balancing and failover, policy route, static route, network address translation (NAT), SNMP, SSH, LAN/WLAN IGMP snooping, PPPoE relay

Supported browsers

Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™

11.0 and later) on tablets

Interface languages

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český,

VPN Plus Server3

Turn your Synology Router into a powerful VPN server. VPN Plus Server allows secure VPN access through web browsers and clients, with support for various VPN services - WebVPN, Synology SSL VPN, SSTP, OpenVPN, L2TP over IPSec, and PPTP. Multiple management tools are available to network administrators to regulate and monitor VPN traffic

Threat Prevention

Greatly enhance the security of your router with IDS and IPS systems, designed to safeguard your network against internet

threats

Cloud Station Server

Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files

RADIUS Server

Provides centralized authentication, authorization, and accounting for wireless network access

DNS Server

An address server for your local network

Download Station

• Supported download protocols: BT/HTTP/FTP/NZB/eMule

• Max. number of concurrent download tasks: 50

Media Server

Stream multimedia directly from your router

Certification

Wi-Fi Certified, CE, UKCA, TELEC, VCCI, iDA, BSMI, JATE, FCC, NCC, RCM

Environmental safety

RoHS Compliant

Package content

• RT6600ax main unit

• AC power adapter

• RJ-45 LAN cable

• Quick Installation Guide

Warranty

2 years
