HAT5300-12T

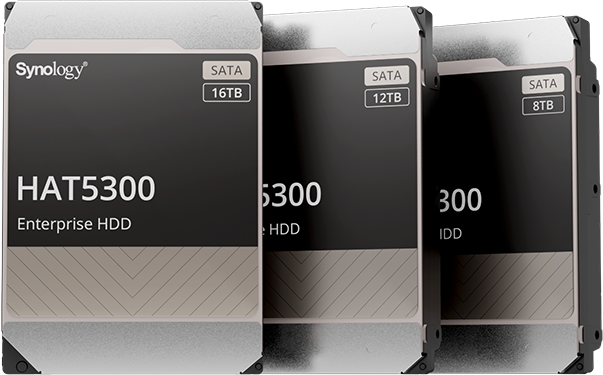

HAT5300-12T image click to zoom

  • Параметри12 TB 3.5" SATA HDD, 7200rpm, HAT5300-12T
  • Други:  7200 rpm, 2,5 mil. Hours MTBF
  • Гаранция60 m
  • Наличностна склад
  • Цена с включен ДДС: 1058.40 BGN

Технически данни

Hardware Specifications

HAT5300-8T

HAT5300-12T

HAT5300-16T

General Capacity 8 TB 12 TB 16 TB
Form Factor 3.5" 3.5" 3.5"
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Sector Size 512e 512e 512e
Performance Rotational Speed 7,200 rpm 7,200 rpm 7,200 rpm
Interface Speed 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Buffer Size 256 MiB 256 MiB 512 MiB
Maximum Sustained Data Transfer Speed (Typ.) 230 MiB/s 242 MiB/s 262 MiB/s
Reliability Mean Time to Failure (MTTF) 2.5 million hours 2.5 million hours 2.5 million hours
Workload Rating 550 TB Transferred per Year 550 TB Transferred per Year 550 TB Transferred per Year
Warranty 5 Years 5 Years 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Power Consumption Supply Voltage 12 V (± 10%) / 5 V (+10/-7%) 12 V (± 10%) / 5 V (+10/-7%) 12 V (± 10%) / 5 V (+10/-7%)
Active Idle (Typ.) 6.38 W 4.25 W 4.00 W
Random Read / Write (4KB Q1) (Typ.) 9.10 W 7.83 W 7.63 W
Notes Power consumption may differ according to configurations and platforms.
Temperature Operating 5°C to 60°C (41°F to 140°F) 5°C to 60°C (41°F to 140°F) 5°C to 60°C (41°F to 140°F)
Non-operating -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Shock Operating 686 m/s2 {70 G} (2 ms duration) 686 m/s2 {70 G} (2 ms duration) 686 m/s2 {70 G} (2 ms duration)
Non-operating 2,450 m/s2 {250 G} (2 ms duration) 2,450 m/s2 {250 G} (2 ms duration) 2,450 m/s2 {250 G} (2 ms duration)
Vibration Operating 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz) 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz) 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz)
Non-operating 29.4 m/s2 {3.0 G} (5 to 500 Hz) 29.4 m/s2 {3.0 G} (5 to 500 Hz) 29.4 m/s2 {3.0 G} (5 to 500 Hz)
Altitude Operating -305 m to 3,048 m -305 m to 3,048 m -305 m to 3,048 m
Non-operating -305 m to 12,192 m -305 m to 12,192 m -305 m to 12,192 m
Relative Humidity Operating 5% to 90% R.H. (No condensation) 5% to 90% R.H. (No condensation) 5% to 90% R.H. (No condensation)
Non-operating 5% to 95% R.H. (No condensation) 5% to 95% R.H. (No condensation) 5% to 95% R.H. (No condensation)
Others Size (Height x Width x Depth) 26.1 mm x 101.85 mm x 147 mm 26.1 mm x 101.85 mm x 147 mm 26.1 mm x 101.85 mm x 147 mm
Weight 770 g 720 g 720 g
Certification
  • CE
  • EAC
  • BSMI
  • RCM
  • KC
  • RoHS
  • ICES
  • CSA
  • TUV
  • UL
  • CE
  • EAC
  • BSMI
  • RCM
  • KC
  • RoHS
  • ICES
  • CSA
  • TUV
  • UL
  • CE
  • EAC
  • BSMI
  • RCM
  • KC
  • RoHS
  • ICES
  • TUV
  • UL
